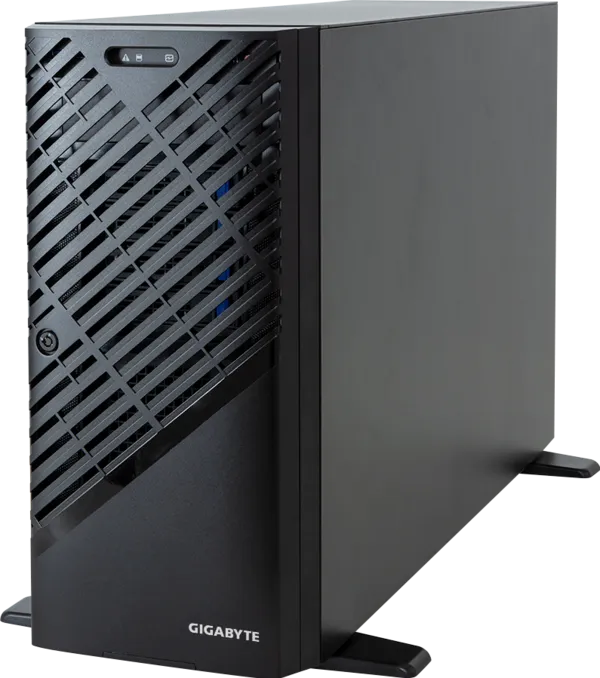

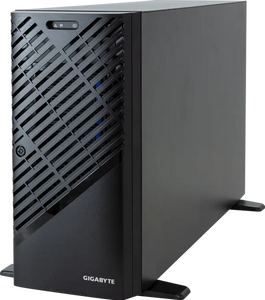

Gigabyte W753-W50-AA01 Pedestal Intel Xeon W-2500 8 x DDR5 4 x SATA 1200W Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Gigabyte W753-W50-AA01 is a pedestal server featuring Intel Xeon W-2500 and W-2400 processors, with a single processor socket (LGA 4677) and up to 250W TDP. It offers 8× DDR5 DIMM slots supporting up to 256GB of memory, 4× 3.5"/2.5" SATA bays, and expansion slots for high-performance GPUs and storage.
Specifications
Model Number: W753-W50-AA01
Brand: Gigabyte
Alt Part Number(s): W753-W50-AA01
Product Type: Server
Technical Description
Brand: Gigabyte
Model: W753-W50-AA01
Form Factor: Pedestal
Dimensions: 218 x 455 x 726.3 mm
Motherboard: MW53-HP0
CPU: Intel® Xeon® W-2500 Processors; Intel® Xeon® W-2400 Processors; Single processor, TDP up to 250W
Socket: 1 x LGA 4677 (Socket E)
Chipset: Intel® W790
Memory: 8 x DIMM slots; DDR5 memory supported only; 4-channel memory architecture; RDIMM up to 64GB supported; 3DS RDIMM up to 256GB supported; Memory speed: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
LAN: 2 x 2.5Gb/s LAN ports (2 x Intel® I226-LM); 1 x 10/100/1000 Mbps Management LAN
Video: Integrated in Aspeed® AST2600; 1 x VGA port
Audio: Realtek® ALC897 HD Audio Codec; Supports 2/4/5.1/7.1 channel configurations; Rear 3 x Audio jacks (Audio in/Audio out/Mic); Front 2 x Audio jacks (Audio out/Mic)
Storage: 4 x 3.5"/2.5" SATA bays; Optional 4 x 3.5"/2.5" SATA bays; Note: Storage card required to support NVMe and SAS drives
RAID: Intel® SATA RAID 0/1/10/5
Peripheral Drives: 5.25" space reserved for ODD device
Expansion Slots: Slot_7: PCIe x16 (Gen5 x16) slot, from CPU; Slot_6: PCIe x16 (Gen5 x16) slot, from CPU; Slot_5: PCIe x16 (Gen5 x16) slot, from CPU; Slot_4: PCIe x16 (Gen5 x16) slot, from CPU; Slot_2: PCIe x16 (Gen3 x4) slot, from PCH; 3 x M.2 slots for storage: M-key; PCIe Gen4 x4, from PCH; Support 2280 cards
Internal I/O: 1 x TPM header; 1 x VROC connector
Front I/O: 2 x USB 3.2 Gen1 (Type-A); 2 x Audio jacks (Audio out/Mic); 1 x Power button with LED; 1 x Reset button; 1 x Power LED; 1 x Storage activity LED; 1 x System status LED
Rear I/O: 1 x USB 3.2 Gen2x2 (Type-C); 5 x USB 3.2 Gen2x1 (Type-A); 1 x VGA; 1 x COM; 2 x RJ45; 1 x MLAN; 3 x Audio jacks; 1 x ID button with LED
TPM: 1 x TPM header with SPI interface; Optional TPM2.0 kit: CTM010
Power Supply: Single 1200W ATX 80 PLUS Platinum power supply
AC Input: 110-240V~/ 14-9A, 50-60Hz; 200-240V~/ 9A, 50-60Hz (Only for China and Korea)
DC Output: Max 1200W; +12V/ 100A; +5V/ 20A; +3.3V/ 20A; +5Vsb/ 2.5A
