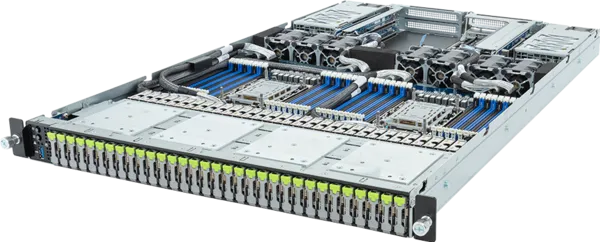

Gigabyte S183-SH0-AAV1 1U Dual Intel Xeon Scalable 32 x DDR5 32 x NVMe 1600W Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Gigabyte S183-SH0-AAV1 is a 1U rackmount server supporting dual 5th and 4th Generation Intel Xeon Scalable processors with up to 350W TDP. It features 32 DIMM slots supporting DDR5 RDIMM memory, 32 hot-swappable E1.S NVMe drive bays, and dual 1600W 80 PLUS Titanium redundant power supplies for high-performance and efficient computing.
Specifications
Model Number: S183-SH0-AAV1
Brand: Gigabyte
Alt Part Number(s): S183-SH0-AAV1
Product Type: Server
Technical Description
Brand: Gigabyte
Model: S183-SH0-AAV1
Form Factor: 1U
Dimensions: 438 x 43.5 x 730 mm
Motherboard: MSH3-ES0
CPU: 5th Generation Intel® Xeon® Scalable Processors; 4th Generation Intel® Xeon® Scalable Processors; Intel® Xeon® CPU Max Series; Dual processor, TDP up to 350 W
Socket: 2 x LGA 4677 (Socket E)
Chipset: Intel® C741
Memory: 32 x DIMM slots; Support DDR5 RDIMM; 8-Channel memory per processor; 5th Gen Intel® Xeon®: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC); 4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC); Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
LAN: Rear (G-SCM board - CDCR112): 2 x 1 Gb/s LAN (1 x Intel® I350-AM2); 1 x 10/100/1000 Mb/s Management LAN
Video: Integrated in ASPEED® AST2600; 1 x Mini-DP
Storage: Front hot-swap: 32 x 9.5 mm E1.S NVMe; (16 x NVMe from CPU_0, 16 x NVMe from CPU_1); Internal M.2 (CMTP0C0): 1 x M.2 (2280/22110), PCIe Gen3 x4 or SATA, from PCH; Internal M.2 (CMTP0C1): 1 x M.2 (2280/22110), PCIe Gen3 x4 or SATA, from PCH
RAID: Optional compatible RAID Cards: NVMe/NVMe-oF RAID Cards with SupremeRAID™ by Graid Technology; RAID Card models: SR-1000-FD32, SR-1010-FD32; Support RAID 0/1/5/6/10
PCIe Expansion Slots: Riser Card CRSD013: 1 x FHHL x16 (Gen5 x16), from CPU_1; Riser Card CRSD022: 1 x FHHL x16 (Gen5 x16 or x8), from CPU_0; 1 x FHHL x16 (Gen5 x0 or x8), from CPU_0
Front I/O: 1 x USB 3.2 Gen1 port (Type-A); 1 x Power button with LED; 1 x ID button with LED; 1 x Storage activity LED; 1 x System status LED
Rear I/O: G-SCM board - CDCR112: 2 x USB 3.2 Gen1 ports (Type-A); 1 x Mini-DP; 2 x RJ45 ports; 1 x MLAN port; 1 x ID LED
Security Modules: 1 x TPM header with SPI interface; Optional TPM 2.0 kit: CTM010
Power Supply: Dual 1600 W 80 PLUS Titanium redundant power supply
AC Input: 100-240V~/ 12-9.5A, 50/60Hz
DC Input: (Only for China) 240Vdc/ 9.5A
DC Output: Max 1000W/ 100-127V~; +12.2V/ 82A; +12Vsb/ 3A; Max 1600W/ 200-240V~ or 240Vdc Input; +12.2V/ 131.2A; +12Vsb/ 3A
