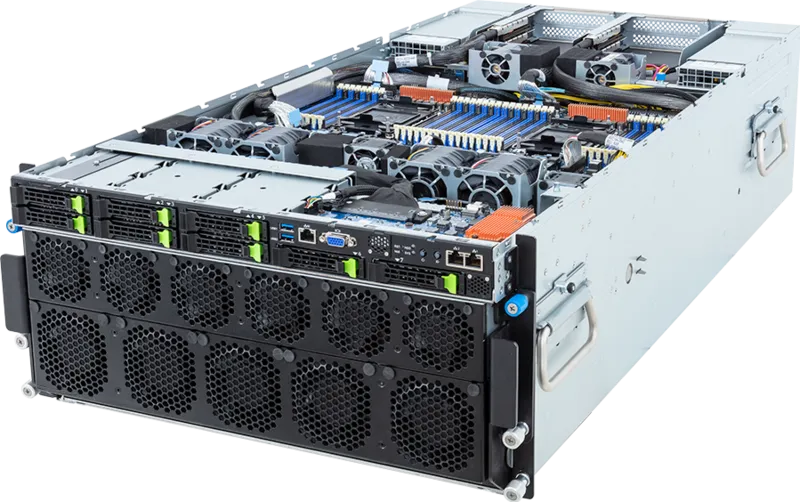

Gigabyte G593-SD2-AAX1 5U Dual Intel Xeon Scalable 8x SXM5 GPUs 32 DIMM DDR5 Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Gigabyte G593-SD2-AAX1 is a 5U rackmount server featuring dual 5th Generation Intel Xeon Scalable processors or Intel Xeon CPU Max Series with up to 350W TDP. It includes 32 DIMM slots for DDR5 RDIMM memory, 8 x PCIe Gen5 x16 expansion slots, and 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays for storage. This server supports modular GPU configurations, including NVIDIA HGX H100 with 8 x SXM5 GPUs, and is powered by 4+2 3000W redundant PSUs for optimal performance and power efficiency.
Specifications
Model Number: G593-SD2-AAX1
Brand: Gigabyte
Alt Part Number(s): G593-SD2-AAX1
Product Type: Server
Technical Description
Brand: Gigabyte
Model: G593-SD2-AAX1
Form Factor: 5U
Dimensions: 447 x 219.7 x 945
Motherboard: MSB3-G40
CPU: 5th Generation Intel® Xeon® Scalable Processors; 4th Generation Intel® Xeon® Scalable Processors; Intel® Xeon® CPU Max Series
CPU TDP: Dual processor, TDP up to 350W
Socket: 2 x LGA 4677; Socket E
Chipset: Intel® C741
Memory: 32 x DIMM slots; Support DDR5 RDIMM; 8-Channel memory per processor
Memory Speed: 5600 MT/s (5th Gen); 4800 MT/s (4th Gen/Max Series)
LAN: 2 x 10Gb/s LAN (1 x Intel® X710-AT2); 1 x 10/100/1000 Mbps Management LAN
Video: Integrated in ASPEED® AST2600; 1 x VGA port
Storage: 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
SAS: Requires SAS add-in cards
RAID: Intel® SATA RAID 0/1/10/5; Supports optional RAID add-in cards
Modular GPU: NVIDIA HGX™ H100 with 8 x SXM5 GPUs
PCIe Expansion Slots: 8 x LP x16 (Gen5 x16); 4 x FHHL x16 (Gen5 x16)
Power Supply: 4+2 3000W 80 PLUS Titanium redundant power supplies
AC Input: 100-120V~/16A, 50/60Hz; 200-240V~/16A, 50/60Hz
