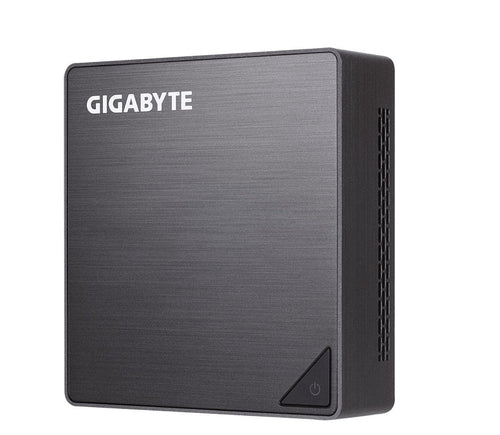

"Image may differ from actual product"
Roll over image to zoom in Click on image to zoom
This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.
How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!
Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.
Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!
Realtime Inventory: Live inventory updates are not available for this product.
- Overview
The Gigabyte E264-S30-AAJ1 is a high-performance 2U Edge Server designed to bridge the gap between heavy data generation and real-time processing. It is specifically optimized for AI training, inference, and visual computing at the network edge.
Specifications
Model Number: E264-S30-AAJ1
Brand: Gigabyte
Alt Part Number(s): E264-S30-AAJ1
Product Type: Server
Technical Description
Brand: Gigabyte
Model Number: E264-S30-AAJ1
Processor Type: Single Intel Xeon 6700/6500-Series
Processor Core: 86 Core/172 Thread
Processor Power: TDP up to 350W
Processor Socket: 1 x LGA 4710 Socket E2
Motherboard: MS34-DC0
Chipset Type: System on Chip
Graphics Controller: ASPEED AST2600
Networking: 1 x 1Gb/s LAN port via Intel I210-AT
Number of Drive Bays: 2 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
Expansion Slots: 2 x FHFL x16, 2 x OCP NIC 3.0
Memory Supported: Up to 4TB
Memory Size: 32 GB, 64 GB, 128 GB, up to 256 GB per DIMM
Memory Technology: DDR5 SDRAM
Memory Speed: RDIMM: 6400 MT/s (1DPC), 5200 MT/s (2DPC),MRDIMM: 8000 MT/s
Memory Slots: 16 x DIMM slots
Memory Channel: 8-Channel
Power Supply: 1+1 redundant 2000W 80 PLUS Titanium
System Cooling: 4 x 80x80x38mm
Form Factor: 2U Rackmount
