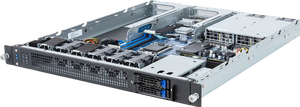

Gigabyte E133-X10-AAA1 1U Intel Xeon 6300 E-2400 Pentium Gold Rackmount Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview

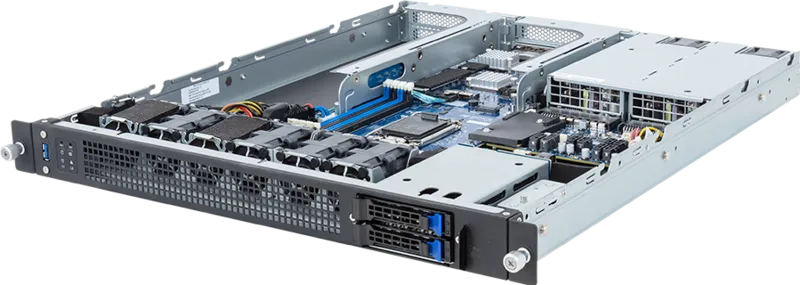

Gigabyte E133-X10-AAA1 is a 1U server featuring Intel Xeon 6300-Series or E-2400 processors, supporting single processors with a TDP of up to 95W. It comes with 4 x DIMM slots for DDR5 ECC UDIMM memory, supporting up to 4400 MT/s. The server offers 2 x 1Gb/s LAN ports, 2 x 2.5" SATA hot-swap bays, and a PCIe Gen5 x16 expansion slot. Equipped with 1+1 550W 80 PLUS Platinum redundant power supplies, it ensures reliable performance and efficiency for demanding workloads.
Specifications
Model Number: E133-X10-AAA1
Brand: Gigabyte
Alt Part Number(s): E133-X10-AAA1
Product Type: Server
Technical Description
Brand: Gigabyte
Model: E133-X10-AAA1
Form Factor: 1U
Dimensions: 438 x 43.5 x 520
Motherboard: MX14-BL1
CPU: Intel® Xeon® 6300-Series Processors; Intel® Xeon® E-2400 Processors; Intel® Pentium® Gold G7400/G7400T Processor
Processor Configuration: Single processor, TDP up to 95W
Socket: 1 x LGA 1700
Chipset: Intel® C262
Memory: 4 x DIMM slots; Support DDR5 ECC UDIMM; Dual Channel memory per processor; Up to 4400 MT/s (1DPC), 4000 MT/s (2DPC/1R), 3600 MT/s (2DPC/2R)
LAN: 2 x 1Gb/s LAN (Intel® I210-AT); 1 x 10/100/1000 Mbps Management LAN
Video: Integrated in ASPEED® AST2600; 1 x Mini-DP
Storage: 2 x 2.5" SATA hot-swap bays; Internal M.2: 1 x M.2 (2280/22110), PCIe Gen4 x4, from CPU
SAS: N/A
RAID: Intel® SATA RAID 0/1; Support optional RAID add-in cards
PCIe Expansion Slots: 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU; 1 x FHHL x4 (Gen4 x4), from PCH
Front I/O: 1 x USB 3.2 Gen1 port (Type-A); 1 x Power button with LED; 1 x ID button with LED; 1 x NMI button; 1 x Reset button; 2 x LAN activity LEDs; 1 x Storage activity LED; 1 x System status LED
Rear I/O: 2 x USB 3.2 Gen1 ports (Type-A); 1 x Mini-DP; 2 x RJ45 ports; 1 x MLAN port; 1 x ID button with LED
Security Modules: 1 x TPM header with SPI interface; Optional TPM2.0 kit: CTM010
Power Supply: 1+1 550W 80 PLUS Platinum redundant power supplies
AC Input: 100-240V~/ 8-4A, 50-60Hz
DC Output: Max 550W; +12V/ 44A; +12Vsb/ 2.1A
