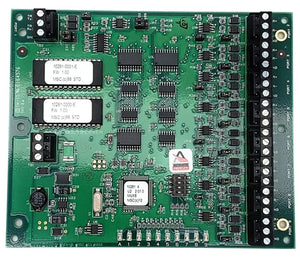

Lenel LNL-8000 8-Channel 12VDC RS232 Star Multiplexer–(REV-B)
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
The Star Multiplexer from Lenel is designed to implement star topology on a downstream port of any Lenel Intelligent System Controller or on any host communication port of any OnGuard server. Up to eight RS-485 (2-wire) connections or four RS-485 (4-wire) connections can be made downstream of the LNL-8000. The Lenel Star Multiplexer requires 12 VDC for power. It allows communication protocol conversion, and provides connection with alternate communication devices to extend effective distances.
Specifications
Mfr Part Number: LNL-8000
Brand: Lenel
Alt Part Number: LNL-8000
Type: Multiplexer
Technical Description
Brand: Lenel
Model: LNL-8000
Video Inputs: 8 channels
Bus interface: RS232, RS485
Voltage: 12 V DC
DC input: 12 VDC ± 15%, 250 mA
AC input: 12 VAC ± 15%. 400 mA RMS
Power Consumption: 250 mA
Operating: 32° to 158° F (0° to +70° C)
Storage: -67° to 185° F (-55° to +85° C)
Humidity: 0 to 95% RHNC
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Dimensions: 6 x 5 x 1 in.
Features
Host communications - 38.4 Kbps direct wire (RS-232/RS-485 multidropped)
12 VDC input power
Status LEDs for heartbeat, upstream and downstream communication
Support for either 2-wire or 4-wire RS-485 topologies
RS-485 on-board termination is jumper selectable
Can be used for retrofit and new wiring configurations
*
