Brivo B-ACS6000-MBE
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview

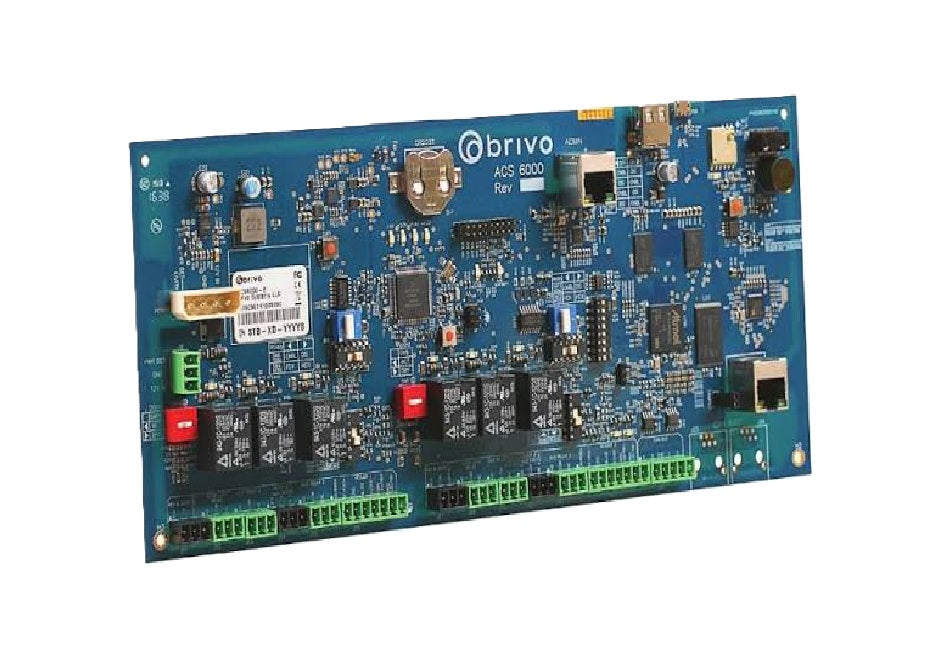

The Brivo B-ACS6000-MBE is a 2-reader native IP main controller board designed for the Brivo Access cloud platform. It acts as the central processing and communications hub for the ACS6000 series access control systems
Specifications
Model Number: B-ACS6000-MBE
Brand: Brivo
Alt Part Number(s): B-ACS6000-MBE
Product Type: KVM Switch
Technical Description
Brand: Brivo
Model Number: B-ACS6000-MBE
Reader Capacity: 2 readers on the main board
Maximum Readers: Up to 30 readers with expansion boards
Reader Interfaces: Wiegand and OSDP over RS-485
Credential Capacity: Unlimited when connected to Brivo Access; up to 250,000 credentials offline
Offline Event Storage: 60,000 events, FIFO
Primary Host Connectivity: Native 10/100 Ethernet (LAN port)
Wireless Connectivity: Built-in Wi-Fi client
Inputs: 8 onboard: 2 door-position, 2 request-to-exit, 4 auxiliary
Relays: 6 Form-C (SPDT): 2 lock-switching + 4 auxiliary
Expansion Bus: CAN Bus
Power Input: Molex Connector requiring DC 12V at 3 Amps input from an ACS6100 power supply board
