- Overview
Overview

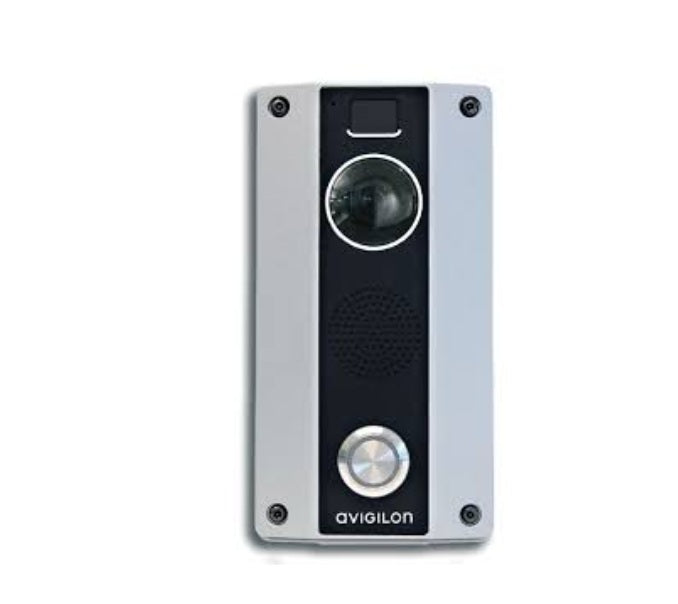

The Avigilon 3.0C-H4VI-RO1-IR is a 3-megapixel H4 Video Intercom featuring a fisheye lens, bi-directional communication, and integrated IR illumination, designed for secured entry systems. The "RO1" in the model name indicates it is for recessed mounting.
Specifications
Model Number: 3.0C-H4VI-RO1-IR
Brand: Avigilon
Alt Part Number(s): 3.0C-H4VI-RO1-IR
Product Type: Camera
Technical Description
Brand: Avigilon
Model: 3.0C-H4VI-RO1-IR
Avigilon 3.0C-H4VI-RO1-IR
Product Type: Intercom Camera
Condition: New Open Box
Camera & Imaging
Resolution: 3 MP (2048 × 1536) progressive-scan CMOS sensor
Frame Rate: Up to 30 fps
Lens: Fixed 1.83 mm, F2.4 fisheye with ~170° horizontal field of view
Wide Dynamic Range (WDR): Triple-exposure WDR (up to ~120 dB) for challenging lighting
Low-light: LightCatcher technology, 0 lux with IR
Night Vision & Illumination
IR illumination: Integrated IR LEDs
Effective IR range: ~5 m (15 ft) at 0 lux
Network & Connectivity
Ethernet: 100 Mbit/s, PoE (IEEE 802.3af)
Protocols: IPv4/IPv6, HTTP/S, RTSP, RTP, TCP/UDP, DHCP, DNS, NTP, IGMP, and more
Onboard storage: microSD/SDHC/SDXC support
Audio & Intercom
Bi-directional audio: Built-in microphone and speaker with noise reduction & echo cancellation
Audio codecs: Opus, G.711
I/O & Control
Alarm I/O: 1 alarm input, 2 alarm outputs, 1 tamper output
Door control: Remote door release support and ACC/ACM integration
SIP support: Peer-to-peer/PBX voice calls supported (depending on firmware)
Environmental & Mechanical
Weather rating: IP66 dust/water resistance
Vandal resistance: IK10 impact rating
Operating temp: ~-40 °C to +60 °C
Housing: Aluminum enclosure
Video Standards & Features
Compression: H.264, Motion JPEG with HDSM SmartCodec™
Analytics: Supports Avigilon Appearance Search and basic analytics features
ONVIF: Profile S compliant for third-party integration (varies by firmware)
Dimensions & Power
Dimensions: ~227 × 120 × 100 mm (varies slightly by mount)
Weight: ~1.23 kg
Power: 12 V DC or PoE; ~10 W typical
