Description
Overview

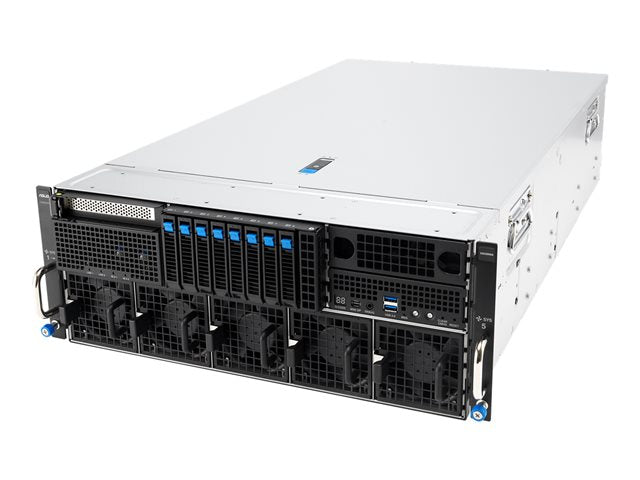

ASUS ESC8000A-E13P-32W 4U 2-way 3 TB DDR5 SDRAM Rackmount Server
Specifications
Model Number: ESC8000A-E13P-32W
Brand: ASUS
Alt Part Number(s): ESC8000A-E13P-32W
Product Type: Server
Technical Description
Brand: ASUS
Model: ESC8000A-E13P-32W
Form Factor: Rack-mountable - 4U
Server Scalability: 2-way
Processor Socket: 2 x LGA6096
CPU Installed: No CPU (Upgradable)
Max CPU Supported: 2
RAM Installed / Max: 0 GB / 3 TB DDR5 SDRAM
Memory Slots: 24 DIMM 288-pin (24 empty)
Storage Bays: 8 x 2.5" hot-swap bays
Storage Controller: 1 x NVMe, 8 channels
Hard Drive Installed: None
M.2 Slots: 2 x M.2 22110 (PCIe 5.0 x4 mode)
Expansion Slots:
- 8 x PCIe 5.0 x16 (full-length, full-height)
- 5 x PCIe 5.0 x16 (half-length, full-height)
- 1 x PCIe 5.0 x16 (half-length, full-height, x8 mode)
Networking:
- 2 x 10 Gigabit Ethernet (Intel X710-AT2)
- Supports 1GbE, 2.5GbE, 5GbE, 10GbE
Power Supply: 4 x 3200W (AC 200–240V, 50/60Hz)
Power Redundancy: Yes (3+1 Redundancy Scheme)
Efficiency Certification: 80 PLUS Platinum
Interfaces:
- 3 x USB 3.2 Gen 1 (2 front, 1 rear)
- 1 x Mini DisplayPort (front)
- 2 x 10GbE LAN (rear)
- 1 x Management RJ-45
Software Included: ASUS Control Center Enterprise
Operating System: Not included
Operating Temperature: 50°F to 95°F
Operating Humidity: 20% – 95% (non-condensing)
