Description

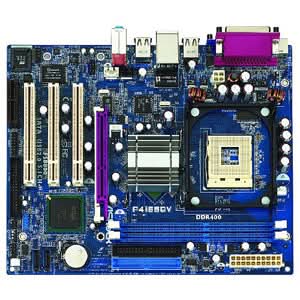

The P4i65GV Desktop Board, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.
P4I65GV Product Overview
- Chipset Manufacturer: Intel
- Chipset Model: 865GV
- Total Processor Supported: 1
- Processor Technology: Hyper-Threading Technology
- Processor Socket: Socket PGA-478
- Processor Supported: Pentium 4
- Processor Supported: Celeron D
- Processor Supported: Celeron
- Front Side Bus: 800 MHz
- Front Side Bus: 533 MHz
- Front Side Bus: 400 MHz
Processor & Chipset
- Number of Memory Slots: 2
- Maximum Memory: 2 GB
- Memory Standard: DDR400/PC3200
- Memory Standard: DDR333/PC2700
- Memory Standard: DDR266/PC2100
- Memory Technology: DDR SDRAM
Memory
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/150
- Controller Type: Ultra ATA/100 (ATA-6)
I/O Controller
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: Intel
- Graphics Controller Model: Extreme Graphics 2
- Graphics Controller Memory: 64 MB
Video
- Audio Channels: 5.1
Audio
- Fast Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 4
- Number of PCI Slots: 3
- Number of AMR Slots: 1
I/O Expansions
- Total Number of USB Ports: 6
- Number of USB 2.0 Ports: 6
- Parallel Port: Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
- PS/2 Port: Yes
- Number of PS/2 Ports: 2
Interfaces/Ports
- Number of IDE Interfaces: 2
- Number of SATA Interfaces: 2
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
Onboard Interfaces
- Form Factor: Micro ATX
- Width: 9.6"
- Depth: 7.8"
Physical Characteristics
- Additional Information:
- 1 x AGI Slot
- 2Mb AMI BIOS
- AMI Legal BIOS
- Supports Plug and Play
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
- Drivers
- Utilities
- AntiVirus Software
Miscellaneous
BIOS:
Support CD Contents:
