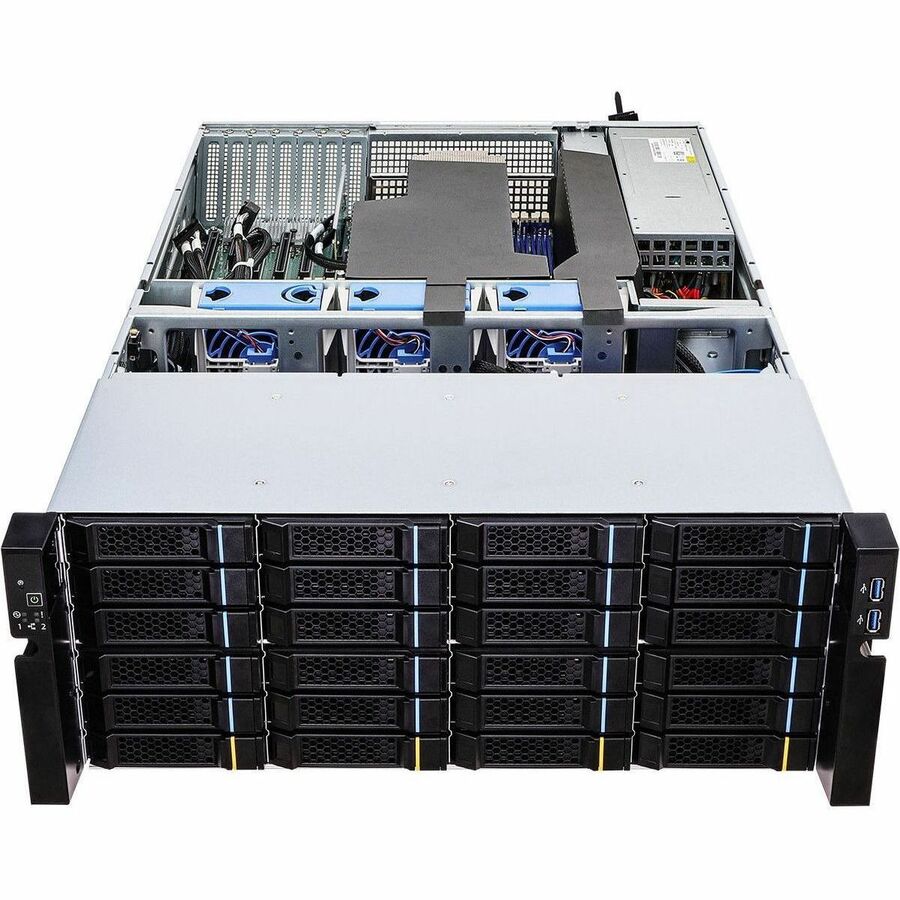

ASRock 4U36L6E-ICX2/2T 4U Intel Xeon 64 Core 4TB 5 Slot Barebone Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The 4U36L6E-ICX2/2T is a 4U rackmount storage server barebone system from ASRock Rack designed for high-density storage and high-performance computing. It is built on the Intel C621A chipset and supports dual 3rd Gen Intel Xeon Scalable processors
- 4U Rackmount with 1+1 Platinum 1200W CRPS
- Dual Socket P+ (LGA 4189), supports 3rd Gen Intel Xeon Scalable processors
- 8+8 DIMM slots, support DDR4 RDIMM/ LRDIMM
- 36 Hot-swap 3.5" drive bays and 4 of those can also support 2.5" NVMe drives
- 2 Hot-swap 2.5'' NVMe drive bays
- Dual 10GbE RJ45 by Intel®X710
- Remote management (IPMI)
Product Specification:
| Product Type: Barebone System |
| Input Voltage: 120 V AC,230 V AC |
| Manufacturer Part Number: 4U36L6E-ICX2/2T |
| Manufacturer Website Address: https://www.asrockrack.com/index.asp |
| Form Factor: Rack-mountable |
| Manufacturer: ASRock Rack Inc |
| Product Model: 4U36L6E-ICX2/2T |
| Product Name: 4U36L6E-ICX2/2T Barebone System |
| Processor Supported: Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| Controller Type: Serial ATA,NVMe |
| Processor Socket: Socket LGA-4189 |
| Rack Height: 4U |
| Brand Name: ASRock Rack |
| Memory Technology: DDR4 SDRAM |
| Memory Standard: DDR4-3200/PC4-25600 |
| 64 Bit Processing: Yes |
| Thermal Design Power: 205 W |
| Chipset Manufacturer: Intel |
| Chipset Model: C621A |
| Graphics Controller Model: AST2500 |
| Number Of Power Supplies Installed: 2 |
| Graphics Memory Technology: DDR4 SDRAM |
| Graphics Memory Accessibility: Shared |
| Number Of Processors Supported: 2 |
| Raid Supported: Yes |
| Ethernet Technology: 10 Gigabit Ethernet |
| Number Of Total Expansion Bays: 38 |
| Number Of Pci Express X8 Slots: 1 |
| Number Of Pci Express X16 Slots: 4 |
| Number Of Network (Rj 45) Ports: 3 |
| Network (Rj 45): Yes |
| Maximum Power Supply Wattage: 800 W |
| Total Number Of Usb Ports: 4 |
| Number Of Vga Ports: 1 |
| Total Number Of Expansion Slots: 5 |
| Number Of Usb 3.2 Gen 1 Ports: 4 |
| Total Number Of Memory Slots: 16 |
| Feature1: 4U Rackmount with 1+1 Platinum 1200W CRPS |
| Feature2: Dual Socket P+ (LGA 4189), supports 3rd Gen Intel Xeon Scalable processors |
| Feature3: 8+8 DIMM slots, support DDR4 RDIMM/ LRDIMM |
| Feature4: 36 Hot-swap 3.5" drive bays and 4 of those can also support 2.5" NVMe drives |
| Feature5: 2 Hot-swap 2.5'' NVMe drive bays |
| Feature6: Dual 10GbE RJ45 by Intel®X710 |
| Feature7: Remote management (IPMI) |
