- Overview

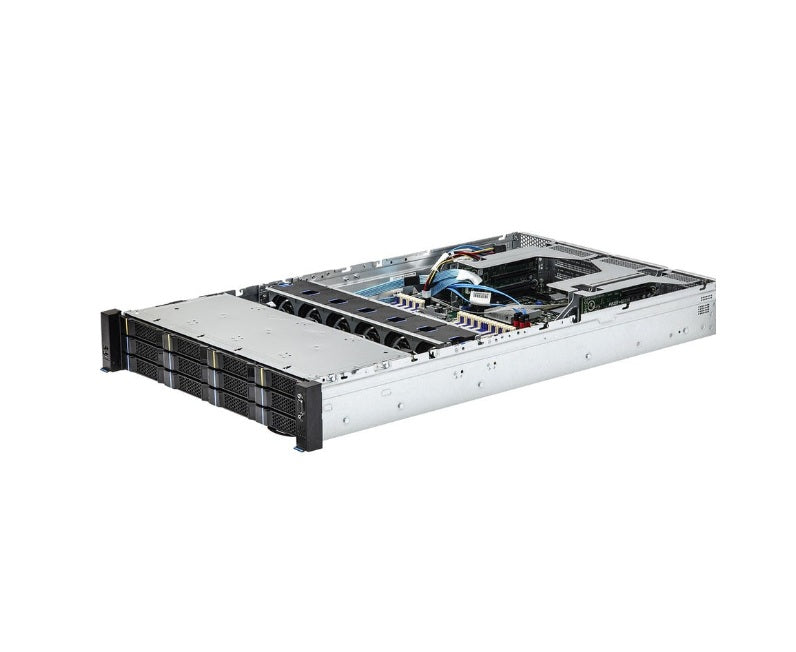

The ASRock Rack 2U12L-ICX2 is a 2U rackmount storage server barebone designed for mid-range data center and business needs. It features a dual-socket architecture supporting 3rd Gen Intel Xeon Scalable processors (Ice Lake-SP) on the LGA 4189 socket.
- 2U Rackmount with 1+1 1600W CRPS
- Dual Socket P+ (LGA 4189), supports 3rd Gen Intel® Xeon® Scalable processors
- 16+16 DIMM slots (2DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel® Optane™ Persistent Memory 200 series
- 12 hot-swap 3.5"/2.5" drive bays, 2 fixed 2.5" SATA drive bays
- 4 FHHL PCIe4.0 x16 or 2 FHHL PCIe4.0 x16, 4 FHHL PCIe4.0 x8
- 1 low-profile PCIe4.0 x16 or 2 low-profile PCIe4.0 x8
- Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
- 2 RJ45 (1GbE) by Intel® i350-AM2
- 1 OCP NIC 3.0 (PCIe4.0 x16)
- Remote management (IPMI)
Product Specification:
| Product Type: Barebone System |
| Input Voltage: 120 V AC,230 V AC |
| Manufacturer Part Number: 2U12L-ICX2 |
| Manufacturer Website Address: http://www.asrock.com |
| Maximum Memory Supported: 256 GB |
| Form Factor: Rack-mountable |
| Manufacturer: ASRock, Inc |
| Product Model: 2U12L-ICX2 |
| Product Name: 2U12L-ICX2 Barebone System |
| Processor Supported: Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| Controller Type: Serial ATA/600,Serial Attached SCSI (SAS) |
| Processor Socket: Socket LGA-4189 |
| Rack Height: 2U |
| Brand Name: ASRock |
| Memory Technology: DDR4 SDRAM |
| Memory Standard: DDR4-3200/PC4-25600 |
| 64 Bit Processing: Yes |
| Chipset Manufacturer: Intel |
| Chipset Model: C621A |
| Number Of Power Supplies Installed: 2 |
| Ethernet Technology: Gigabit Ethernet |
| Number Of Total Expansion Bays: 14 |
| Number Of 3.5" Bays: 12 |
| Maximum Power Supply Wattage: 1600 W |
| Total Number Of Usb Ports: 4 |
| Number Of Vga Ports: 1 |
| Intel Optane Memory Ready: Yes |
| Number Of Usb 3.2 Gen 1 Ports: 3 |
| Total Number Of Memory Slots: 32 |
| Feature1: 2U Rackmount with 1+1 1600W CRPS |
| Feature2: Dual Socket P+ (LGA 4189), supports 3rd Gen Intel® Xeon® Scalable processors |
| Feature3: 16+16 DIMM slots (2DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel® Optane™ Persistent Memory 200 series |
| Feature4: 12 hot-swap 3.5"/2.5" drive bays, 2 fixed 2.5" SATA drive bays |
| Feature5: 4 FHHL PCIe4.0 x16 or 2 FHHL PCIe4.0 x16, 4 FHHL PCIe4.0 x8 |
| Feature6: 1 low-profile PCIe4.0 x16 or 2 low-profile PCIe4.0 x8 |
| Feature7: Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s) |
| Feature8: 2 RJ45 (1GbE) by Intel® i350-AM2 |
| Feature9: 1 OCP NIC 3.0 (PCIe4.0 x16) |
| Feature10: Remote management (IPMI) |
