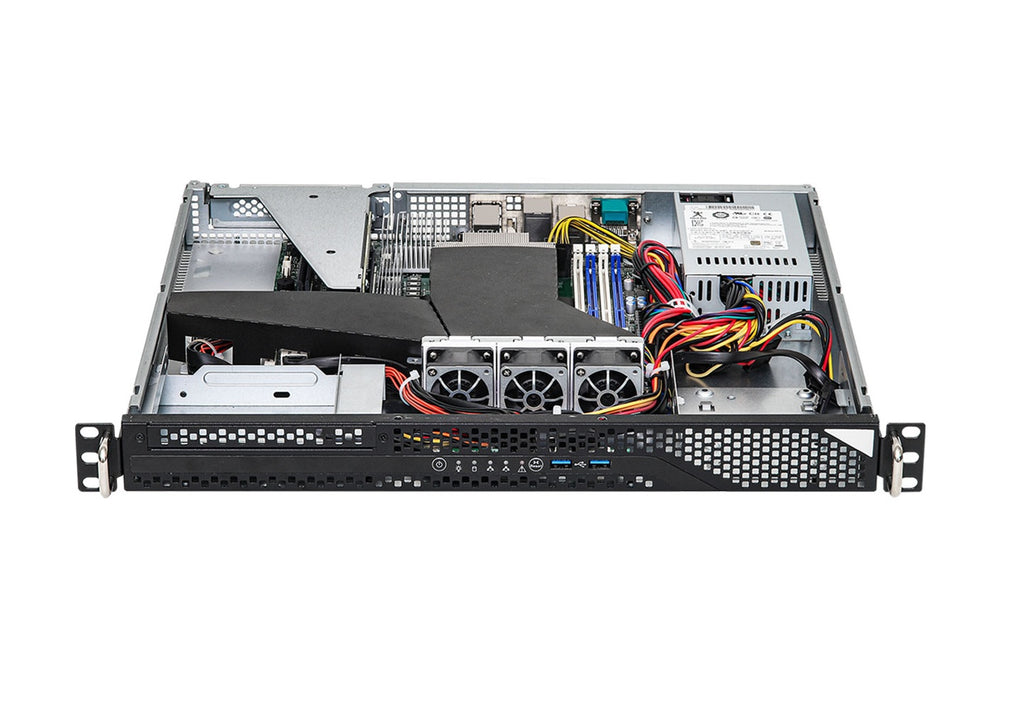

ASRock 1U2LW-X570/2L2T 1U AMD Ryzen 16-Core 32GB Barebone Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The ASRock Rack 1U2LW-X570/2L2T is a 1U short-depth barebone server system built on the X570D4U-2L2T motherboard. It is designed to support high-performance AMD Ryzen processors with upgraded 10GbE networking
Specifications
Model Number: 1U2LW-X570/2L2T
Brand: ASRock
Alt Part Number(s): 1U2LW-X570/2L2T
Product Type: Barebone Server
Technical Description
Brand: ASRock
Model Number: 1U2LW-X570/2L2T
Processor Type: AMD Ryzen 5000 and 3000 Series
Processor Core: 16 Core/32 Thread
Processor Power: Up to 105W
Processor Socket: AM4 PGA 1331
Motherboard: X570D4U-2L2T
Chipset Type: AMD X570
Graphics Controller: ASPEED AST2500
Rear I/O Ports: 2 × USB 3.2 Gen1 (Type-A),1 x VGA (D-Sub), 1 x HDMI, 1 x COM (DB9) port with LED
Front I/O Ports: 2 x USB 3.2 Gen1 Type-A
Networking: 5 × RJ45 LAN (Gigabit Ethernet)
RAID Levels: 0, 1, 10
Number of Drive Bays: 2 × SATA drive bays (3.5"/2.5") 2 × M.2 NVMe/SATA slots (PCIe 4.0 x4)
Expansion Slots: 1 × PCIe 4.0 x16 slot
Memory Supported: Up to 128GB
Memory Size: Up to 32GB per DIMM
Memory Technology: DDR4
Memory Speed: Up to 3200MHz
Memory Slots: 4 × DDR4 DIMM slots
Power Supply: Single PSU 315W 80 Plus Gold
System Cooling: 3 PWM Easy-swap 40x28 mm fans
Form Factor: 1U Rackmount
Height: 1.7"
Width: 16.9"
Depth: 15.5"
