- Overview

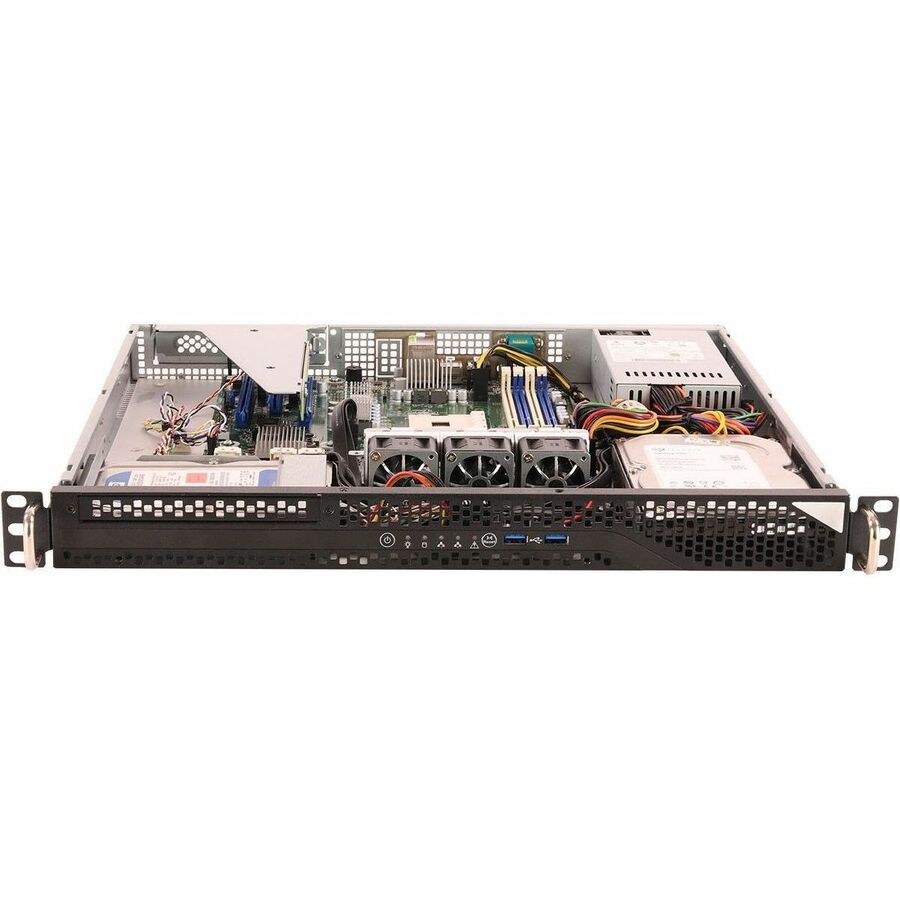

The 1U2LW-X470 is a 1U rackmount server barebone system from ASRock Rack designed for high-density computing using AMD Ryzen processors. It is built around the X470D4U micro-ATX motherboard and the AMD X470 chipset.
- 1U Rackmount with 315W PSU
- Supports AMD AM4 Socket Ryzen™ Series CPUs and Ryzen 7nm CPUs
- Supports 4x DDR4 ECC and non-ECC UDIMM, max. 128 GB
- Supports internal 2 x 3.5'' HDD or 1x3.5'' HDD + 1x 2.5'' HDD, external: Slim ODD x1
- Supports 1 PCIe3.0 x16, 1 PCIe3.0 x8, 1 PCIe3.0 x4
- Supports Intel®i210*2
- ASPEED 2500 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
Product Specification:
| Product Type: Barebone System |
| Manufacturer Part Number: 1U2LW-X470 |
| Manufacturer Website Address: https://www.asrockrack.com/index.asp |
| Maximum Memory Supported: 128 GB |
| Form Factor: Rack-mountable |
| Manufacturer: ASRock Rack Inc |
| Product Model: 1U2LW-X470 |
| Product Name: 1U2LW-X470 Barebone System |
| Processor Supported: Ryzen |
| Raid Levels: 0, 1, 10 |
| Controller Type: Serial ATA/600 |
| Processor Socket: Socket AM4 |
| Rack Height: 1U |
| Brand Name: ASRock Rack |
| Memory Technology: DDR4 SDRAM |
| Memory Standard: DDR4-3200/PC4-25600 |
| 64 Bit Processing: Yes |
| Chipset Manufacturer: AMD |
| Chipset Model: Promontory X470 |
| Graphics Controller Model: AST2500 |
| Number Of Sata Interfaces: 8 |
| Number Of Power Supplies Installed: 1 |
| Graphics Memory Capacity: 16 MB |
| Graphics Memory Technology: DDR4 SDRAM |
| Graphics Memory Accessibility: Shared |
| Number Of Processors Supported: 1 |
| Raid Supported: Yes |
| Ethernet Technology: Gigabit Ethernet |
| Number Of Total Expansion Bays: 4 |
| Number Of 3.5" Bays: 3 |
| Number Of Pci Express X8 Slots: 1 |
| Number Of Pci Express X16 Slots: 2 |
| Number Of Network (Rj 45) Ports: 3 |
| Network (Rj 45): Yes |
| Maximum Power Supply Wattage: 315 W |
| Total Number Of Usb Ports: 4 |
| Number Of Serial Ports: 1 |
| Number Of Vga Ports: 1 |
| Total Number Of Expansion Slots: 5 |
| Number Of M.2 Interfaces: 2 |
| Number Of Usb 3.2 Gen 1 Ports: 2 |
| Total Number Of Memory Slots: 4 |
| Feature1: 1U Rackmount with 315W PSU |
| Feature2: Supports AMD AM4 Socket Ryzen™ Series CPUs and Ryzen 7nm CPUs |
| Feature3: Supports 4x DDR4 ECC and non-ECC UDIMM, max. 128 GB |
| Feature4: Supports internal 2 x 3.5'' HDD or 1x3.5'' HDD + 1x 2.5'' HDD, external: Slim ODD x1 |
| Feature5: Supports 1 PCIe3.0 x16, 1 PCIe3.0 x8, 1 PCIe3.0 x4 |
| Feature6: Supports Intel®i210*2 |
| Feature7: ASPEED 2500 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN |
