Overview

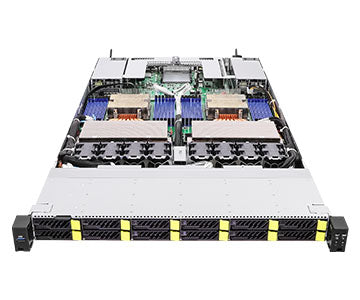

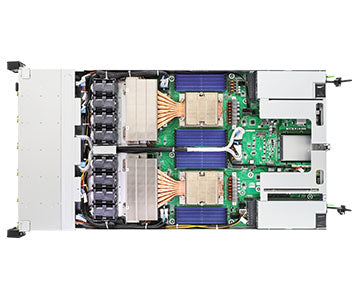

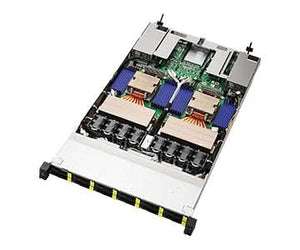

ASRock 1U12E-TURIN2/EVAC 1U12E-TURIN2 series is a high density 1U rackmount server supporting dual AMD EPYC 9005 and 9004 processors with up to 6 TB DDR5 memory and PCIe 5.0 architecture. It offers 12 hot swap NVMe drive bays, dual socket SP5 support, redundant 80 Plus Platinum power supplies, and advanced management features for demanding data center and AI workloads.
Specifications
Model Number: 1U12E-TURIN2/EVAC
Brand: ASrock
Alt Part Number(s): 1U12E-TURIN2/EVAC
Product Type: Server
Technical Description
Brand: ASRock
Model: 1U12E-TURIN2/EVAC
Form Factor: 1U Rackmount
Dimensions: 830 x 438 x 43.5 mm (32.7'' x 17.2'' x 1.7'')
Support MB: TURIN2D24TM3-2L+/500W/1U12E
Buttons: Power button w/ LED; ID button w/ LED; System reset
LEDs: HDD Activity; LAN 1/2; System fault
I/O Ports: 1 Type-A (USB 3.2 Gen1)

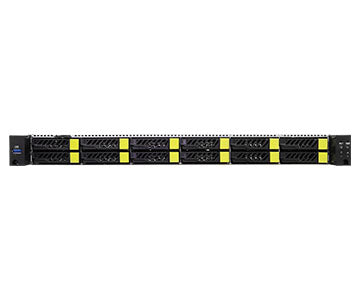

Front Side Drive Bay: 12 Hot-swap 2.5" NVMe (PCIe 5.0 x4) drive bays
Front Side Backplane: 12-port NVMe passive backplanes
Internal Side: 1 M-key (PCIe 3.0 x4), supports 2280/2260/2242/2230 form factor [CPU0]; 1 M-key (PCIe 3.0 x4), supports 2280/2242 form factor [CPU1]
Power Supply Type: 1+1 CRPS
Output Watts: 1000W @100–127Vac input; 2000W @200–240Vac input
Efficiency: 80-PLUS Platinum
AC Input: Low-line: 100–127Vac, 60/50Hz; High-line: 200–240Vac, 60/50Hz
System Fan: 8 Easy-swap 40 x 56 mm fans
CPU: Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology); AMD EPYC™ 97x4 series processors
Socket: Dual Socket SP5 (LGA 6096)
Thermal Design Power: Up to 360W
Chipset: System on Chip
Supported DIMM Quantity: 12 + 12 DIMM slots (1DPC)
Supported Type: DDR5 288-pin RDIMM; DDR5 RDIMM-3DS
Max. Capacity per DIMM: RDIMM: 128GB (2Rx4); RDIMM-3DS: 256GB (2Rx4)
Max. DIMM Frequency: 6400 MHz
Voltage: 1.1V
PCIe x16: Rear: 2 FHHL PCIe 5.0 x16 [CPU0][CPU1]
TPM Support: TPM-SPI
Additional GbE Controller: Intel® i350; 2 RJ45 (1GbE)
OCP Slot: 1 OCP NIC 3.0 (PCIe 5.0 x16) [CPU1]
BMC Controller: ASPEED AST2600
IPMI Dedicated GLAN: 1 Realtek RTL8211F for dedicated management GLAN
Graphics Controller: ASPEED AST2600
VRAM: DDR4 512MB
UID Button/LED: 1 UID button w/ LED

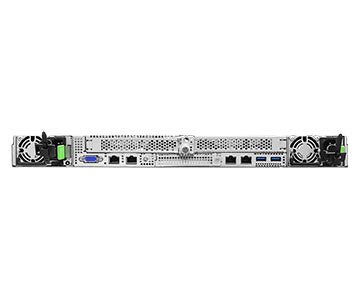

Video Port: 1 DB15 (VGA)
Serial Port: 1 RJ45 (COM)
USB Ports: 2 Type-A (USB 3.2 Gen1)
RJ45 Ports: 2 RJ45 (1GbE); 1 dedicated IPMI
BIOS Type: AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features: ASRock Rack Instant Flash; ACPI 6.4 and above compliance wake up events; SMBIOS 3.5.0 and above; Plug and Play (PnP)
Temperature Monitoring: CPU temperature sensing; MB temperature sensing; Card side temperature sensing
Fan Monitoring: Fan tachometer; CPU quiet fan (auto-adjust by CPU temperature); Fan multi-speed control
Voltage Monitoring: P0_VDDCR_CPU0; P0_VDDCR_CPU1; P0_VDDCR_SOC; P0_VDD_18_DUAL; P0_VDD_11_S3; P0_VDDIO; P1_VDDCR_CPU0; P1_VDDCR_CPU1; P1_VDDCR_SOC; P1_VDD_18_DUAL; P1_VDD_11_S3; P1_VDDIO; +BAT; +12V; +3VSB; +5VSB
Temperature Range: Operating: 10°C ~ 35°C; Non-operating: -40°C ~ 70°C
Humidity: Non-operating: 20% ~ 90% (non-condensing)
