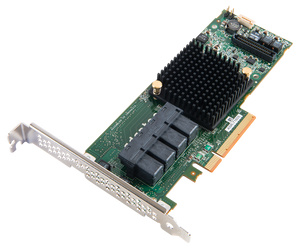

Adaptec ASR-71605 Quad-Port Single PCI-Express 3.0 x8 Low Profile Plug-in SAS RAID Controller Card

$349.00 Regular price
Sale price$349.00
AdaptecSKU: 875636
Model Number: ASR-71605
Condition: New
In stock:  Yes
No reviews


This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.



The Adaptec Series 7 RAID adapter family features PMC's 24 port PM8015 RAID-on-Chip (ROC), which combines a x8 PCIe Gen3 interface with 6Gb/s SAS ports to enable a new generation of high- performance RAID adapters that are unmatched by any other ROC in the industry. Adaptec Series 7 RAID adapters are available with 8, 16, or 24 native SAS/SATA ports. While the PCIe Gen3 interface doubles bandwidth to the host compared to PCIe Gen2, it requires at least 16 6Gb/s SAS/SATA ports to double the bandwidth to the storage devices. Competing 6Gb/s solutions have only 8 ports, and cannot leverage that advantage.



Model Number:  ASR-71605

Brand:  Adaptec

Alt Part Number(s):  ASR-71605

Product Type:  Controller Card


Technical Description

Brand:  Adaptec

Model:  ASR-71605

Product Name:  Adaptec RAID 71605 Single

Product Series:  7 (71605)

Product Type:  SAS Controller

Host Interface:  PCI Express 3.0 x8

RAID Supported:  Yes

RAID Levels:  0, 1, 1E, 5, 6, 10, 50, 60

Total Number of SAS Ports:  4

Number of SAS Ports (Internal):  4

SAS Connector Details:  4 SFF-8643

Height:  2.5"

Width:  6.6"

Form Factor:  Plug-in Card

Platform Supported:  PC

Green Compliant:  RoHS

Card Height:  Low-profile

Number of Physical Drive Supported:  256



6 Gb/s throughput at each port


Maximum performance for up to 24 SSDs (No expander needed)

Optional Adaptec Flash Module (AFM-700) for maintenance free cache protection

New mini SAS HD connectors and SAS HD cables for fit and function in dense server configurations

Auto configuration of Simple Volume and HBA modes "set it and forget it"

Support for up to 256 SAS and SATA devices

Support for SSD, HDD, Autoloader, RBOD, Tape

Intel EPSD THOL Certified

PCIe 3.0 Products now PCI-SIG Compliant: ASR-72405 and ASR-71605


Key Software Features

Optimized Disk Utilization

Supported RAID levels - 0, 1, 1E, 5, 6, 10, 50 and 60

HBA Mode and Simple Volume Mode for automatic deployment

Supports up to 256 SAS or SATA devices using SAS expanders

Hybrid RAID 1 & 10

Quick initialization

Online Capacity Expansion

Copyback Hot Spare

Dynamic caching algorithm

Native Command Queuing (NCQ)

Background initialization

Hot-plug drive support

RAID Level Migration

Hot spares - global, dedicated, and pooled

Automatic/manual rebuild of hot spares

SES and SAF-TE enclosure management

Configurable stripe size

S.M.A.R.T. support

Multiple arrays per disk drive

Dynamic sector repair

Staggered drive spin-up

Bootable array support

Support for Tape Devices, Autoloaders


*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
