- Overview

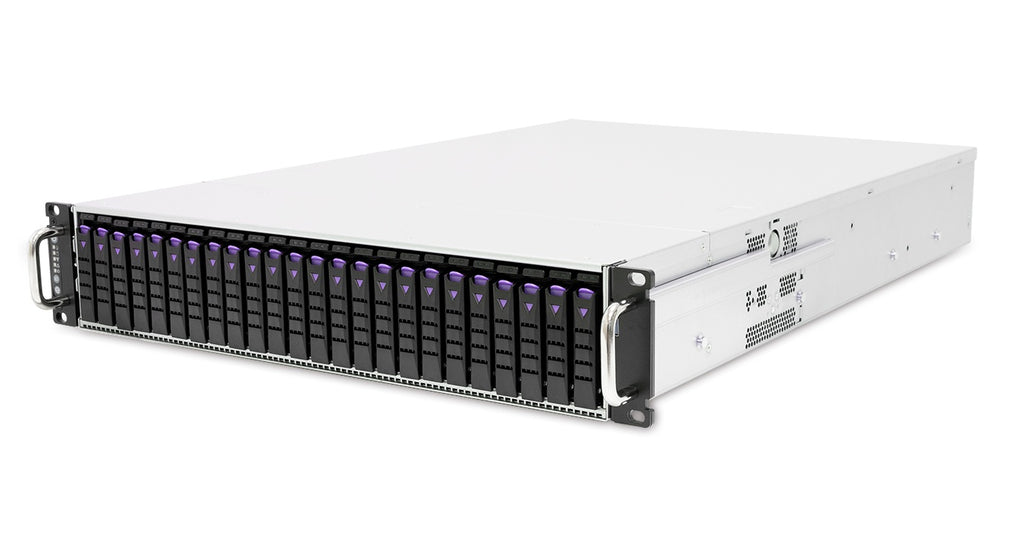

The XP1-S201TU05 is a high-density, all-flash 2U storage server barebone system based on the AIC SB201-TU platform. It is specifically designed to maximize NVMe storage performance for data-intensive applications
Specifications
Model Number: XP1-S201TU05
Brand: AIC
Alt Part Number(s): XP1-S201TU05
Product Type: Barebone Server
Technical Description
Brand: AIC
Model Number: XP1-S201TU05
Series: SB201-TU
Processor Type: 3rd Gen Intel Xeon Scalable
Processor Core: 80 Core/160 Thread
Processor Power: Up to 270W TDP per CPU
Processor Socket: Dual Socket LGA-4189
Chipset Type: Intel C621A
Motherboard: AIC Tucana Server Board
Graphics Controller: ASPEED AST2500
Networking: 2 x 1GbE LAN ports
Number of Drive Bays: 24 × 2.5" NVMe/SAS/SATA front bays, 2 × 2.5" rear bays
Expansion Slots: 3 × PCIe x16, 2 × PCIe x8, 1 × OCP 3.0 x16 slot
Memory Supported: Up to 2TB
Memory Size: Up to 128GB each
Memory Technology: DDR4 RDIMM / LRDIMM + Intel Optane PMem
Memory Speed: Up to 3200MHz
Memory Slots: 16x DIMM (8 slots per CPU)
Channel: 8-channel
Power Supply: Dual 1200W 1+1 redundant 80-Plus Platinum
System Cooling: 6 × 60×38 mm easy‑swap fans
Form Factor: 2U Rackmount
Height: 3.5"
Width: 17"
Depth: 25.4"
