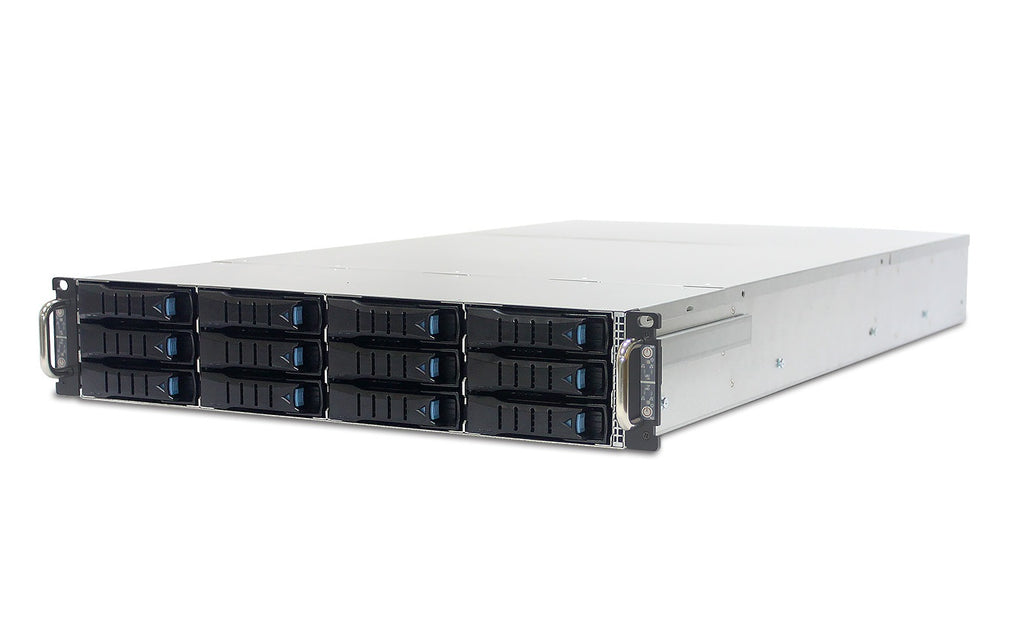

The XP1-P202VL01 is a specific manufacturer part number for an AIC HP202-VL Barebone Server System. It is a high-density, multi-node server designed for enterprise and data centre workloads
Specifications
Model Number: XP1-P202VL01
Brand: AIC
Alt Part Number(s): XP1-P202VL01
Product Type: Barebone Server
Technical Description
Brand: AIC
Model Number: XP1-P202VL01
Series: HP202-VL
Processor Type: 1st or 2nd Generation Intel Xeon Scalable
Processor Core: 56 Core/112 Thread
Processor Power: Up to 165W TDP per CPU
Processor Socket: Dual Socket P (LGA 3647)
Chipset Type: Intel Lewisburg C620
Motherboard: AIC Server Board Vela
Graphics Controller: ASPEED AST2500 BMC
Ports: 2 × USB 3.0 ports (rear), 1×VGA video port, 1 x External COM port
Networking: 1×Dedicated 1 GbE management (IPMI) port, 2×10 GbE (or similar) network ports
Number of Drive Bays: 12 x 3.5" Hot-swap Drive Bays
Internal Bays: 2 x M.2 slots (PCIe 3.0 x4 or SATA)
Expansion Slots: 2 x PCIe 3.0 x16 slots, 1 x OCP 2.0 Mezzanine slot
Memory Supported: Up to 4TB
Memory Size: Up to 256GB each
Memory Technology: DDR4 ECC RDIMM or LRDIMM memory
Memory Speed: 2666MT/s
Memory Slots: 16 DIMM (8 per CPU)
Power Supply: 2000W 1+1 redundant 80+ Platinum / Titanium
System Cooling: 4 × 80×80 mm easy swap fans
Form Factor: 2U Rackmount
Height: 3.5"
Width: 17.2"
Depth: 30.7"
