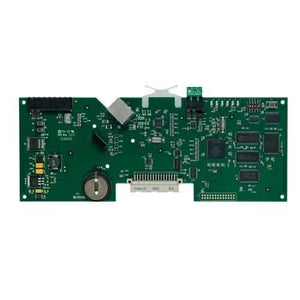

Lenel LNL-3300-M5 Series M Intelligent System Controller

Overview

The LNL-3300-M5 is the CPU for the controller; it replaces a legacy M5/M3000 CPU (E, P, PX, PXN, PXNplus), and the legacy CASI Power/ Comm Board (PN:110064001). The LNL-3300-M5 is plug compatible with 12 VDC power input, cabinet tamper input and AC power fail input from the legacy Power/Comm Board. The LNL-3300-M5 has an onboard 10/100 MB Ethernet connection, either static or DHCP IP addressing capability, and local database for real-time access control decisions and automatic schedule execution.

Specifications

Model Number:  LNL-3300-M5

Brand:  Lenel

Alt Part Number(s):  LNL-3300-M5

Product Type:  System Controller



Technical Description

Brand:  Lenel

Model:  LNL-3300-M5

Power:  12 VDC @300Ma

Max. no. of memory:  15 MB

Ports Host Port: 10/100MB Ethernet

Backplane: RS-485

External Port: two wire RS-485

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Temperature Storage:   -65°F to 185°F (-55°C to 85°C)

Temperature Operating:   32°F to 158°F (0°C to 70°C)

Humidity :  RHNC 5 to 95%



Features

Mercury Hardware for OnGuard, redesign to retrofit into Legacy CASI Controllers

AES Encryption

128 Access Levels

Elevator Control

240,000 Local Badge Database

Mercury Authentic Hardware
