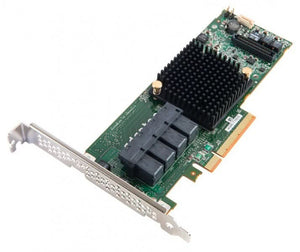

Adaptec 2274400-R Quad-Port Single PCI-Express 3.0 x8 Low Profile Plug-in SAS RAID Controller Card

$449.00 Regular price
Sale price$449.00
AdaptecSKU: 1131001
Model Number: 2274400-R
Condition: New
In stock:  Yes
No reviews



The Adaptec Series 7 RAID adapter family features PMC's 24 port PM8015 RAID-on-Chip (ROC), which combines a x8 PCIe Gen3 interface with 6Gb/s SAS ports to enable a new generation of high- performance RAID adapters that are unmatched by any other ROC in the industry. Adaptec Series 7 RAID adapters are available with 8, 16, or 24 native SAS/SATA ports. While the PCIe Gen3 interface doubles bandwidth to the host compared to PCIe Gen2, it requires at least 16 6Gb/s SAS/SATA ports to double the bandwidth to the storage devices. Competing 6Gb/s solutions have only 8 ports, and cannot leverage that advantage.



Model Number:  2274400-R

Brand:  Adaptec

Alt Part Number(s):  2274400-R

Product Type:  Controller Card


Technical Description

Brand:  Adaptec

Model:  2274400-R

Product Type:  SAS Controller

Host Interface:  PCI Express 3.0 x8

RAID Supported:  Yes

RAID Levels:  0, 1, 1E, 5, 6, 10, 50, 60

Total Number of SAS Ports:  4

Number of SAS Ports (Internal):  4

SAS Connector Details:  4 SFF-8643

Height:  2.5"

Width:  6.6"

Form Factor:  Plug-in Card

Platform Supported:  PC

Green Compliant:  RoHS

Card Height:  Low-profile

Number of Physical Drive Supported:  256



6 Gb/s throughput at each port


Maximum performance for up to 24 SSDs (No expander needed)

Optional Adaptec Flash Module (AFM-700) for maintenance free cache protection

New mini SAS HD connectors and SAS HD cables for fit and function in dense server configurations

Auto configuration of Simple Volume and HBA modes "set it and forget it"

Support for up to 256 SAS and SATA devices

Support for SSD, HDD, Autoloader, RBOD, Tape

Intel EPSD THOL Certified

PCIe 3.0 Products now PCI-SIG Compliant: ASR-72405 and ASR-71605


Key Software Features

Optimized Disk Utilization

Supported RAID levels - 0, 1, 1E, 5, 6, 10, 50 and 60

HBA Mode and Simple Volume Mode for automatic deployment

Supports up to 256 SAS or SATA devices using SAS expanders

Hybrid RAID 1 & 10

Quick initialization

Online Capacity Expansion

Copyback Hot Spare

Dynamic caching algorithm

Native Command Queuing (NCQ)

Background initialization

Hot-plug drive support

RAID Level Migration

Hot spares - global, dedicated, and pooled

Automatic/manual rebuild of hot spares

SES and SAF-TE enclosure management

Configurable stripe size

S.M.A.R.T. support

Multiple arrays per disk drive

Dynamic sector repair

Staggered drive spin-up

Bootable array support

Support for Tape Devices, Autoloaders


*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
