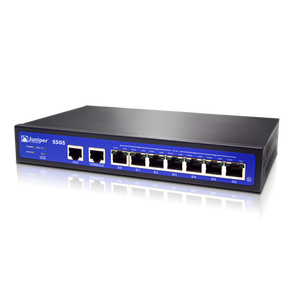

Juniper Networks SSG-5-SH ES-232 Aux Backup Rack-Mountable Secure Services Gateway 5

Overview

The Secure Services Gateway 5 is a fixed form factor platform that delivers 160 Mbps of Stateful firewall traffic and 40 Mbps of IPSec VPN throughput. The Secure Services Gateway 5 is equipped with seven on-board 10/100 interfaces with optional fixed WAN ports (ISDN BRI S/T, V.92 or RS-232 Serial/Aux). Optional support for 802.11 a/b/g and a broad array of wireless specific security allow the SSG 5 to consolidate security, routing and wireless access point into a single device.



Specifications

Model Number:  SSG-5-SH

Brand:  Juniper Networks

Alt Part Number(s):  SSG-5-SH

Type:  Services Gateway



Technical Description

Brand:  Juniper Networks

Model:  SSG-5-SH

Firewall Type:  Rack-Mountable

Type:  Wired

Throughput:  160 Mbps

Maximum Users:  7

Ports:  1 x Management, 1 x Console Management, 7 x RJ-45 10/100Base-TX LAN

Encryption Standard:  AES, DES, 3DES (168-bit)

VPN:  Manual key IKE Support PKI Support Remote access VPN Redundant VPN gateways

OS Support:  ScreenOS

Power Input:  110 V AC, 220 V AC

Dimensions:  8.7" x 5.6" x 1.6"



Features

Management - WebUI (HTTP and HTTPS) Command Line Interface (console) Command Line Interface (telnet) Command Line Interface (SSH) NetScreen-Security Manager All management via VPN tunnel on any interface SNMP full custom MIB Rapid deployment Syslog NetIQ WebTrends: External Traceroute VPN tunnel monitor

Virtualization - 3, 10, 25 Concurrent VPN Tunnel, 10 Tunnel Interface, 200 Policies, 8 Security Zone, 2800 Concurrent Session, 4000 Concurrent Connection

Authentication - LDAP, RSA SecurID, MD5, XAUTH, X.509 Certificates, SHA-1, Web-based, RADIUS

Firewall Protection - URL Filtering, Adware Protection, Anti-phishing, TCP Reassembly for Fragmented Packet Protection, Network Attack Detection, Anti-spyware, Distributed Denial of Service (DDoS), Deep Inspection Firewall, Intrusion Prevention, Keylogger Protection, Protocol Anomaly Detection, Antivirus, Replay Attack Prevention, Anti-spam, Denial of Service (DoS), Malformed Packet Protection
