Description
Overview

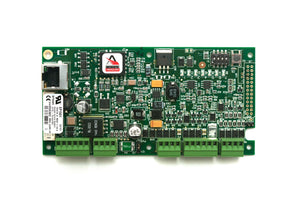

Mercury EP1501 Ethernet Single Reader Interface Intelligent Controller.
Specifications
Model Number: EP1501
Brand: Mercury
Alt Part Number(s): LP1501
Product Type: Controller
Technical Description
Brand: Mercury
Model: EP1501
Power Input: PoE Power Input 12.95 W, compliant to IEEE 802.3af
Power Output: 12 Vdc @ 650 mA including reader and Auxiliary
Power: 12 Vdc 10 %: PoE or local power supply, 180 mA maximum
Data Inputs: Reader Port 1-TTL compatible, F/2F or 2-wire RS-485, Reader Port 2: TTL compatible or F/2F
LED Output: TTL compatible, high > 3 V, low < 0.5 V, 5 mA source/sink maximum
Buzzer Output: Open collector, 12 Vdc open circuit maximum, 40 mA sink maximum
Power: 1 twisted pair, 18 AWG (when using local 12 Vdc power supply)
Ethernet: CAT-5, minimum
Alarm Input: 1 twisted pair per input, 30 ohm maximum
Reader Ports: 2 Reader Ports
Power: 1 Twisted Pair, 18 AWG
Temperature Storage: -55° - 85°C
Operational: 0° - 70° C
Humidity: 5 to 95% RHNC
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Length: 8.0”
Width: 6.0”
Height: 1.0”
