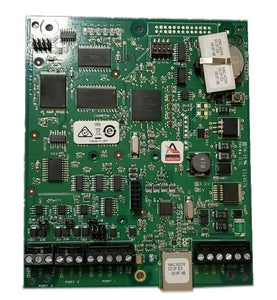

Lenel LNL-3300 12-24VDC 15Mb Intelligent System Controller
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The LNL-3300 Intelligent SystemController (ISC) by Lenel is designed for advanced access control applications. As the access control engine for the OnGuard® system, the ISC provides power and functionality. The ISC can communicate to the host computer in a single- or dual-path configuration of Ethernet, dial-up direct connect RS-485 communication. Multiple combinations of Input Control Modules, Output Control Modules, and Card Reader Interface Modules (up to 64 devices) can be configured.
Specifications
Model Number: LNL-3300
Brand: Lenel
Alt Part Number(s): LNL-3300
Product Type: Intelligent System Controller
Technical Description
Brand: Lenel
Model: LNL-3300
Number of Access Level: 32000
Number of Pin Code Digit: 9
Number of Memory: 15MB
Host connection: IP, RS485
Communication Type: 10/100 BaseT Ethernet
Voltage: 12 ~ 24 V DC
Power Consumption: 300 mA
Operating Temp oC: 0 ~ 70
Operating Humidity %: 0 ~ 95
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Features
On-board Ethernet 10/100Base-T port provides up to 8 times greater throughput than serial-to-Ethernet converters. DHCP and fixed IP addressing supported
DNS device naming through DHCP extended commands
Host dual path communication enabled - on-board Ethernet TCP/IP, direct wire (RS-485, 2-wire multidrop capable), or dial-up communications
15 MB of available on-board, non-volatile flash memory
Battery-backed, non-volatile storage of 50,000 events
Firmware stored in flash memory, background download of firmware updates supported
12 or 24 VDC input power
Supports up to 16 different formats (8 card formats and 8 asset formats)
Biometric template storage support for Schlage Recognition Systems®, Bioscrypt®, and Identix®.
Enhanced anti-passback capabilities
Up to 32,000 access level permissions
255 holidays with grouping, 255 timezones, each with 6 intervals
Elevator control support for up to 128 floors
*
