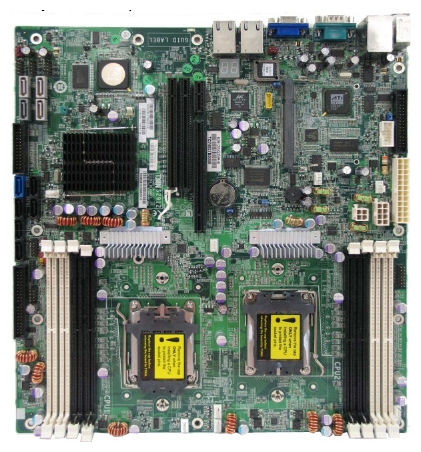

Tyan S2912WG2NR-E NVIDIA nForce Professional 3600 Socket-Dual 1207 DDR2-667MHz Extended-ATX Motherboard

Specifications

Model Number:  S2912WG2NR-E

Brand:  Tyan Computers

Alt Part Number(s):   S2912WG2NR-E

Type:  Motherboard



Technical Description

Brand:  Tyan Computers

Model:  S2912WG2NR-E

CPU Socket Type:  Dual 1207(F)

CPU Type:  Supports up to 2x AMD Opteron Rev.F 2000 series Duel-core / Quad-core processors

System Bus:  1000 MHz

Chipsets:  NVIDIA nForce Professional 3600, Winbond 83627HG Super I/O chip

Analog Devices:  ADT7476 Hardware Monitoring IC

Number of DDR2 Slots:  8 x 240Pin

DDR2 Standard:  DDR2 667

Maximum Memory Supported:  64GB

Channel Supported:  Dual Channel

ECC Supported:  Yes

Registered:  Yes

PCI Express x16:  (1) PCI-E x16 slot (w/ x16 signal), (1) PCI-E x16 slot (w/ x8 signal)

Other Slots:  (1) HTX slot, (1) OPMA connector support M3 OPMA card

PATA:  1 x ATA 133 2 Dev. Max

SATA:  6 x SATA 3.0Gb/s

SATA RAID:  0/1/0+1/5

Onboard Video Chipset:  ATI ES1000

LAN Chipset:  Marvell 88E1121

LAN Speed:  10/100/1000Mbps

Second LAN Chipset:  Marvell 88E1121

Second LAN Speed:  10/100/1000Mbps

Max LAN Speed:  Dual 10/100/1000Mbps

PS/2 Ports:  2

COM Ports:  1

Video Ports:  D-Sub

USB 1.1/2.0:  2 x USB 2.0

Form Factor:  Extended ATX

Dimensions (W x L):  12.0" x 13.0"



Features

LSI 1064E SAS controller with PCI-E x4 interface

Supports (4) SAS/SATA ports

RAID 0, 1 and 1E support
