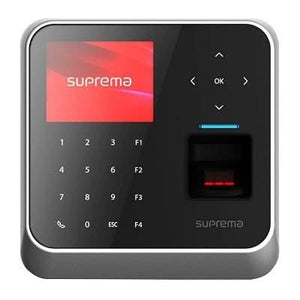

Suprema BS2-OHPW BioStation 2 125Khz HID IP Fingerprint Reader

Overview

The BS2-OHPW BioStation 2 HID Card & Fingerprint Reader from Suprema combines HID card and fingerprint reading to provide dual-layer security, authentication, and access control. This reader is capable of instantly matching and authenticating up to 20,000 fingerprints per second. The optical sensor can recognize fingerprints from up to 500,000 users. The built-in 2.8" LCD screen displays information and settings entered from the numeric keypad and assorted buttons.



Specifications

Mfr Part Number:  BS2-OHPW

Brand:  Suprema

Model Number:  BS2-OHPW

Type:  Fingerprint Reader



Technical Description

Brand:  Suprema

Model:  BS2-OHPW

RF Options:  125 kHz HID Proximity

Maximum Fingers per User:  10

Maximum Templates (Two Templates per Finger):  1,000,000 (1:1), 40,000 (1:N)

IP Ethernet:  RJ45 - Min. Cat 5 - 10/100 Base T

Memory RAM:  128 MB

Memory Flash:  8GB

CPU:  1.0 GHz Single-Core

Serial interface:  RS232, RS485

USB Interface:   1 x USB Rear Pannel

Operating Temperature:  -4 to 122°F / -20 to 50°C

Operating Humidity:  0 to 80%, Non-Condensing

Storage Temperature:  -40 to 158°F / -40 to 70°C

Storage Humidity:  0 to 90%, Non-Condensing

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet



Features

1 GHz CPU

Optical sensor captures and recognizes fingerprints from fingers in non-ideal conditions, such as wet and dry fingers

Instantly matches and authenticates up to 20,000 fingerprints per second

Rapid data transfer sends user and log data at a rate of 5000 users per minute

Holds up to 3,000,000 logs for backup in the event of a connection loss to the server

Up to 1,000,000 templates

Built-in 802.11b/g Wi-Fi

802.3af PoE

100M Ethernet

TCP/IP interface

USB 2.0 interface

USB port to connect to a memory stick

Wiegand input and output

Two TTL inputs and two TTL outputs

Numeric keypad, intercom, escape button, function buttons, arrow keys, and OK button



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
