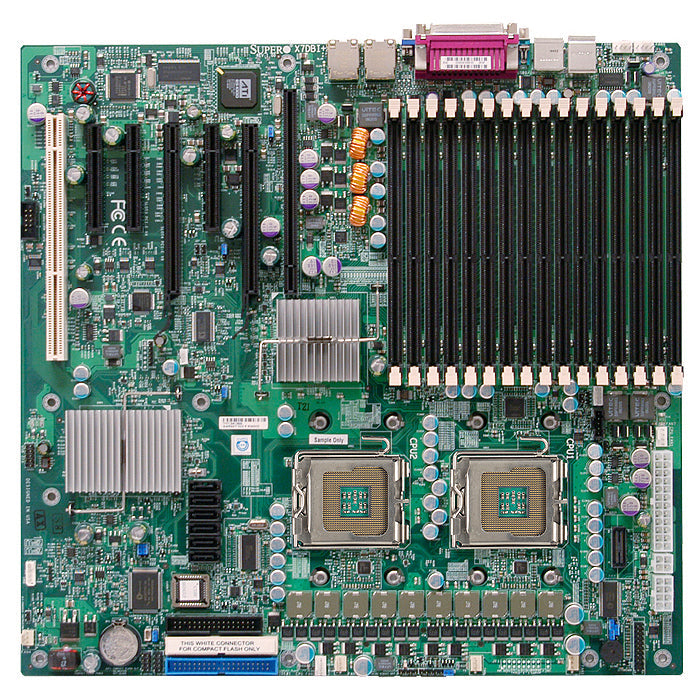

Supermicro X7DBI+ Chipset-Intel 5000 Socket-Dual LGA771 64Gb DDR2-667MHz Enhanced Extended ATX Motherboard

SupermicroSKU: 887453
Model Number: X7DBI+
Condition: New
No reviews

Price:
Sale price$619.00

Description

Specifications

Model Number:  X7DBI+

Brand:  Supermicro

Alt. Part Number(s):  X7DBI+

Product Type:  Motherboard



Technical Description

Brand:  Supermicro

Model:  X7DBI+

CPU:  Dual 771-pin LGA Sockets Supports Intel 64-bit Xeon Quad-Core 5300 sequence, upto 2.66GHz/ Dual-Core 5100/5000 sequence upto 3.73GHz; FSB 1333/1066/667 MHz

Chipset:  Intel 5000P (Blackford) & MCH + ESB2

Memory:  16x 240pin DDR2-667/533 FB-DIMMs, Dual Branch Memory Bus, ECC, Max Capacity 64GB

Slots:  2x PCI-Express x16 Slots (Run on x8); 3x PCI-Express x8 Slots (Run on x4); 1x 64-bit/133MHz PCI-X 3.3V Slot

IDE/SATA:  1x ATA-100 Channel; 6x SATA2 Ports, Support RAID 0, 1, 5, 10

Video:  ATI ES1000 Graphic Controller w/ 16MB Video Memory

LAN:  Intel (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller

Ports:  5x USB 2.0 Ports (2 rear, 3 by headers); 2x PS/2 Ports; 2x Serial Ports (1 rear, 1 by header); 1x Parallel Port; 1x VGA Port; 2x RJ45 LAN Ports

Power Connector:  1x 24pin main power, 1x 8pin 12V CPU power, 1x 4pin 12V CPU power

Form Factor:  Enhanced Extended ATX, 13 x 13.68 inch / 33 x 34.7 cm

Package:  Retail

Note:  To ensure system stability, a 700W (minimum) ATX power supply is requested

RoHS Compliant:  Yes



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
