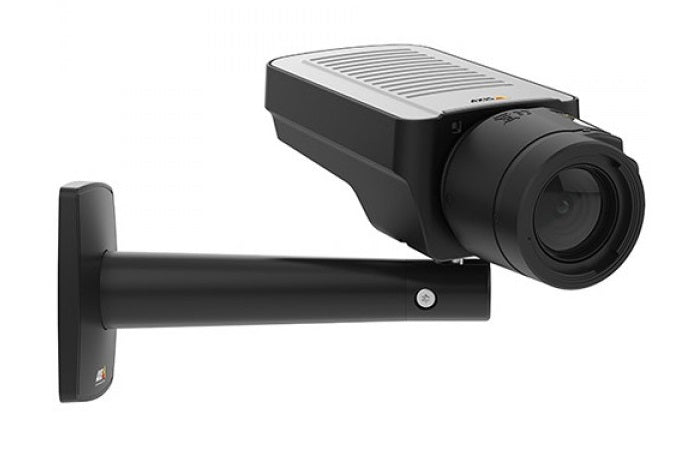

Axis Communications Q1615 MK-II 2.1 Megapixel 0629-001 Indoor Fixed Network Camera

Overview

AXIS Q1615 Mk II is equipped with an i-CS lens, enabling the camera to adjust zoom and focus during remote setup, resulting in easy and quick installation. The camera delivers enhanced Lightfinder technology and WDR – Forensic Capture, optimizing video for forensic purposes in scenes with complex lightning. With up to 50/60 fps in HDTV 1080p and up to 100/120 fps in HDTV 720p, the camera captures all fast moving objects and people in sharp video. Furthermore, the camera features Scene Profiles with Forensic, Live and Traffic Overview profiles, allowing for automatic adjustment of image settings to meet specific surveillance needs.



Specifications

Model Number:  Q1615

Brand:  Axis Communications

Alt Part Number(s):  0629-001

Product Type:  Network Camera



Technical Description

Brand:  Axis Communications

Model:  Q1615

Series:  Mk II

Features:  Audio, Auto Gain Control, Automatic White Balance, Day/Night, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range

Camera Signal:  Network IP

Connection Type:  Wired

Infrared Distance:  Non Infrared

Resolution:  2.1 Megapixel

Lens Type:  Varifocal

Mount Type:  Ceiling, Wall

Compression Method:  H.264, MPEG-4, M-JPEG

Durability:  Indoor

Voltage:  8-28vDC, PoE

Dimensions (W x H):  82 x 58 x 136 mm (3 1/4 x 2 1/4 x 5 3/8 in)

Electronic Shutter:  1/143000 to 2 s

Image Device:  Progressive scan RGB CMOS 1/2.8

Minimum Scene Illumination:  HDTV 1080p 25/30 fps: Color: 0.11 lux, B/W: 0.02 lux, at 50 IRE F1.2, HDTV 1080p 50/60 fps: Color 0.22 lux, B/W: 0.04 lux, at 50 IRE F1.2, HDTV 720p 100/120 fps: Color 0.44 lux, B/W: 0.09 lux, at 50 IRE F1.2

Operating Humidity:  10-85% RH (non-condensing)

Operating Temperature:  0 °C to 55 °C (32 °F to 131 °F)

OSD Menu:  English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese

Power Consumption:  PoE: max 7.1 W, typical 4.4 W 8-28 V DC, max 6.9 W, typical 4.3 W

Protocols:  IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH

Scanning System:  Progressive

Angle of View:  HDTV 720p: Horizontal field of view: 74°–26°, Vertical field of view: 41°–15°, Horizontal field of view: 115°–39°, Vertical field of view: 61°–22°

Rotation Angle:  0°, 90°, 180°, 270°



Features

Support for i-CS lens

Scene Profiles with automatically adjusted image settings

Lightfinder technology and WDR – Forensic Capture

Electronic Image Stabilization

Axis’ Zipstream technology



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
