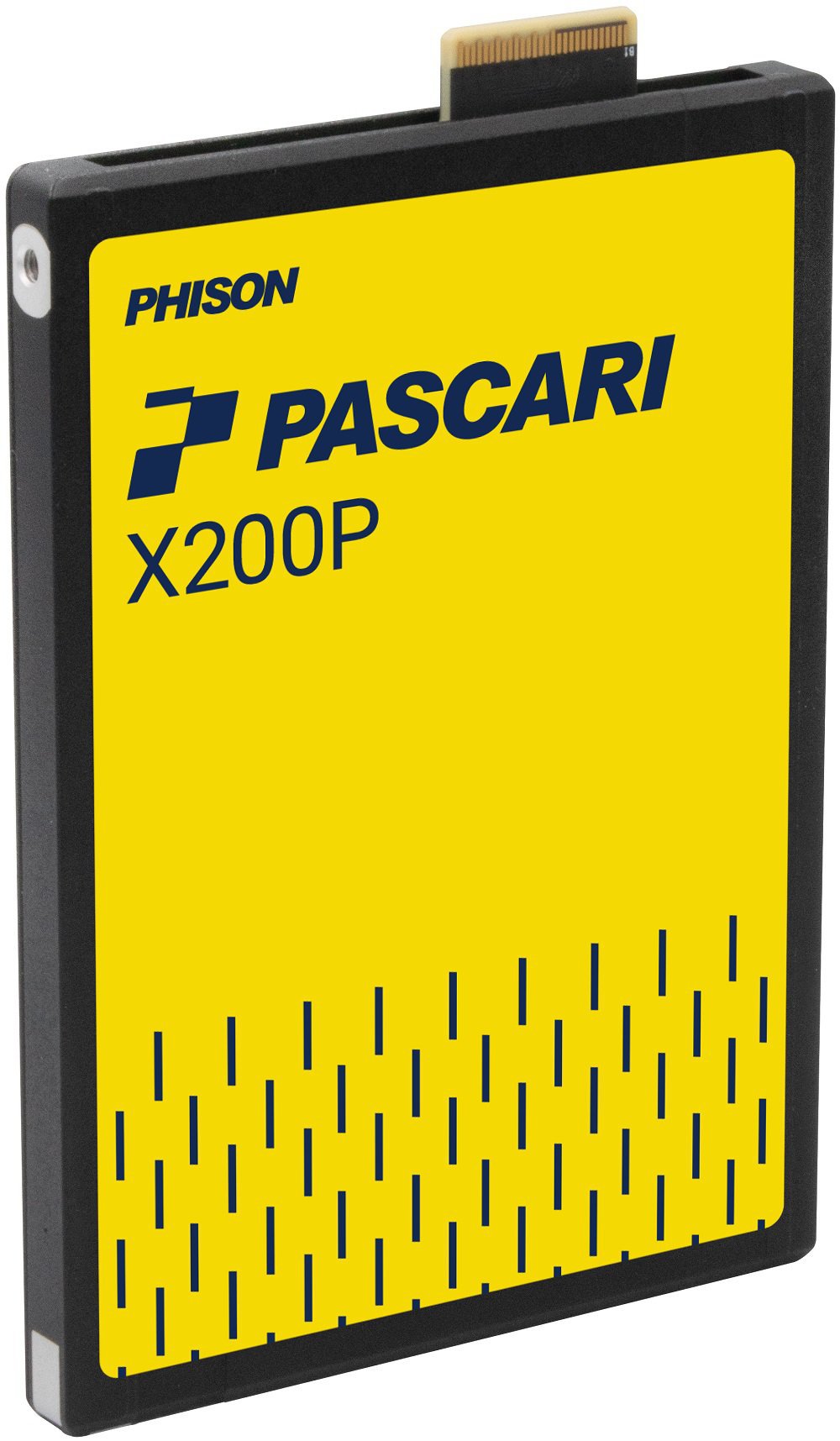

PHISON XP208H031T92P222T0410 Pascari X200P 1920 GB U.2 15mm Single Port PCIe Gen5x4 Opal Security SSD

Price:
$573.00
PHISONSKU: X200P-1T9U
Model Number: XP208H031T92P222T0410
Condition: New
In stock:  Yes
Price:
Sale price$573.00
Get Volume Pricing

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


  • Overview
  • Tech Spec
  • Additional Info

XP208H031T92P222T0410 is a PHISON solid state drive designed for high-performance storage applications. It offers a 1920 GB capacity in a U.2 15mm form factor with PCIe Gen5x4 interface and Opal security features. Ideal for enterprise and data center environments requiring fast data transfer, advanced security, and reliability.

BrandPHISON
Model NumberXP208H031T92P222T0410
Alt Part NumberXP208H031T92P222T0410
Capacity1920 GB
Form FactorU.2 15mm
InterfacePCIe Gen5x4
SecurityOpal
Product TypeSolid State Drive
Single Portx4 lanes
PCIe AERAdvanced Error Reporting
Max Seq. 128KB Read/Write14,000 / 4,200 MB/s (QD=32, Workers=1)
Max 4K Random Read/Write2,100,000 / 160,000 IOPS (QD=64, Workers=8)
Latency 4K R/W (µs)60 / 10 (QD=1, Workers=1); 85 / 250 (QD=4, Workers=8); 260 / 4000 (QD=64, Workers=8)
IOPS Consistency (4KB R/W)95% / 95%
QoS (99%) 4KB R/W Latency (µs)80 / 12 (QD=1, Workers=1); 140 / 250 (QD=4, Workers=8); 900 / 4000 (QD=64, Workers=8)
Active Power25 W
Idle Power<9 W
Inrush Current2.5 A
DWPD1
TBW3504 TB
LBAF512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF2.5 million hours
UBER< 1 sector per 10^18 bits read
ECCYes
Wear LevelingStatic & Dynamic
Bad Block ManagementYes
Deallocate (TRIM)Supported
SMARTSupported
Over-ProvisioningYes
Firmware UpgradeYes
Temperature (Operating)0°C to 70°C (with specified airflow)
Temperature (Storage)-40°C to 85°C
RoHS CompliantYes
Namespace SupportYes
ReservationYes
Metadata ProtectionYes
Thermal ThrottlingYes
Power Loss ProtectionYes
AES-XTS 256-bit EncryptionYes
SMBus SupportYes
NVMe-MI SupportYes
Data Retention3 months
CompliancePCIe Base 5.0; NVMe 2.0; NVMe-MI 1.2; SFF-8639 Rev 4.0, Ver 1.0
Flash Configuration256GB x 8
Flash Type32CE, 512Gb QDP, 3D eTLC
Supply Voltage12V ±10%
12V Noise Level240 mVp-p (0–20 MHz)
12V Min Off Time500 ms
3.3V AUX±15%
Inrush Current12V 2.5 A
