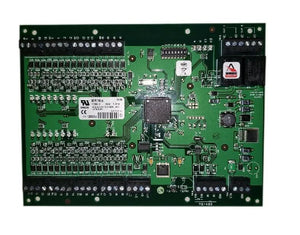

Mercury MR16IN 12-24VDC Input Access Control System

Overview

The Mercury MR16IN Series 2 & 3 SIO is an essential component that supports Mercury’s flexible, building-block approach to access control system design. The MR16IN Series 2 & 3 SIO provides the capacity to link, control and respond to an array of sensors. With its RS-485 connectivity, the MR16IN Series 2 & 3 SIO can be clustered or distributed to best suit each installation environment.



Specifications

Model Number:  MR16IN

Brand:  Mercury

Alt Part Number(s):  MR16IN

Product Type:  Input Access Control System



Technical Description

Brand:  Mercury

Model:  MR16IN

Outputs:  2 Relays: Form–C, 5 Amp 28 VDC

Communications:  RS–485, 2-wire, 4,000’ (twisted pair with shield, Belden 9841)

Inputs:  16 General purpose: programmable circuit type 2 Dedicated: Tamper and Power Monitor

Primary Power:  12-24 VDC +/- 10%, 350mA maximum ; 12Vdc @ 300mA nominal

Temperature:  0-70°C operational, -55-85°C storage

Humidity:  0-95% RHNC

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet



Features

16 programmable inputs; 2 programmable relay outputs

2-wire RS-485 communication

AES 128 bit data encryption

Universal I/O device characterization

Configurable input parameters

Universal system compatibility with Authentic Mercury intelligent controllers

16 programmable inputs; 2 programmable relay outputs

AES 128/256 bit data encryptions

UL 294 recognized, CE compliant, FCC, RoHS
