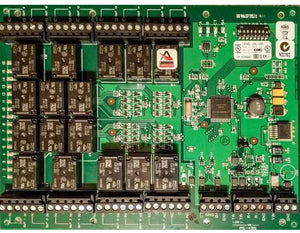

Lenel LNL-1200 2-wire or 4-wire RS-485 Communication Output Control Module

$399.00 Regular price
Sale price$399.00
LenelSKU: 1146669
Model Number: LNL-1200
Condition: New Open Box
In stock:  Yes
No reviews


This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.



The Lenel® Output Control Module (OCM) communicates directly with the Intelligent System Controller (ISC) by either 2-wire or 4-wire RS-485 communication. Each OCM is an individually-addressed device, and counts as a single device on all Intelligent System Controllers. The OCM can be operated by either 12 or 24 VDC power. Each OCM includes dedicated tamper and power failure input contacts.



Mfr Part Number:  LNL-1200

Brand:  Lenel

Model Number:  LNL-1200

Type:  Output Control Module


Technical Description

Brand:  Lenel

Model:  LNL-1200

Host connection:  RS485

Operating voltage:  12 or 24 VDC

Outputs:  16 Form-C, 5A @ 30Vdc, resistive

Inputs:  2 unsupervised, dedicated for cabinet tamper and UPS fault monitoring

Current consumption:  500 mA

Operating temperature:  0 to +70°C

Storage temperature:  -55 to +85°C

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Width:  6.0 In

Length:  8.0 In

Height:  1.0 In



16 Form-C 5 A, 30 VDC contacts for load switching

12 or 24 VDC input power

2 dedicated digital inputs for tamper and power failure status

RS-485 communication, multidropped (2-wire or 4-wire RS-485)

Up to 16 OCMs per Intelligent System Controller

On-board termination jumpers

DIP switch-selectable addressing

Status LEDs for communication to the host, heartbeat and relay status

Elevator control, support for 128 floors

Advanced Encryption Standard (AES) 128-bit or 256-bit encryption supported, depending on ISC and OnGuard version

Suitable as replacement for Series 1 and Series 2 boards


*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
