Description

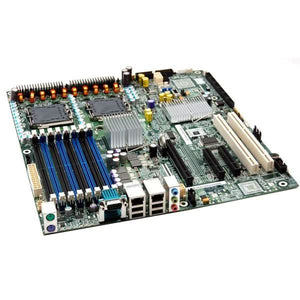

The Intel Workstation Board S5000XVN(SATA) provides incredible performance and memory capacity for demanding workstation operations. This workstation board is ideal for customers needing server class performance and reliability, in addition to high-end graphics. The S5000XVN(SATA) is acoustically optimized to minimize distractions in shared environments.
S5000XVNSATA Specifications
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: 5000X
- Total Processor Supported: 2
- Processor Socket: Socket J LGA-771
- Processor Supported: Xeon
- Front Side Bus: 667 MHz
- Front Side Bus: 1066 MHz
- Front Side Bus: 1333 MHz
Memory
- Number of Memory Slots: 8
- Maximum Memory: 32 GB
- Memory Standard: DDR2-533/PC2-4200
- Memory Standard: DDR2-667/PC2-5300
- Memory Technology: DDR2 SDRAM
I/O Controller
- Controller Type: Serial ATA/300
- Controller Type: Ultra ATA
Audio
- Sound Controller Manufacturer: Realtek
- Sound Controller Model: ALC260
- Audio Channels: 2.0
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 5
- Number of PCI-X Slots: 2
- Total Number of PCI Express Slots: 3
- Number of PCI Express x4 Slots: 2
- Number of PCI Express x16 Slots: 1
Interfaces/Ports
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Serial Port: Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 6
- Total Number of Onboard USB Ports: 1
- Onboard LEDs Header: Yes
Physical Characteristics
- Width: 12.0"
- Depth: 13.0"
System BIOS
- BIOS Type:
-
- Intel Extensible Framework
- BIOS Features:
-
- Rolling BIOS
- SMBIOS
- PnP
- APM
- DMI
- PCI
- ACPI
* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
