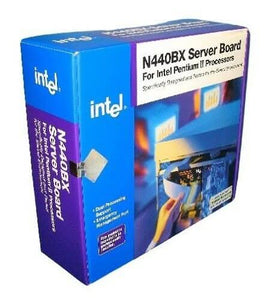

Intel BOXN440BX Dual-CPU Chipset-Intel 440BX 1Gb PC100 SDRAM ATX Server Motherboard

Overview

Intel's N440BX dual-CPU server board offers business users the performance of the ultra-fast 450MHz Pentium II processor. These processors require the board's 82440BX chipset, which supports their 100MHz system bus speed--an increase of 50% over the older system bus speed of 66MHz. Upgrading to an 82440BX system isn't just a matter of utilizing faster CPU's; data flow is sped up between the processor and each component in the system. The N440BX board contains four 168-pin gold-plated SDRAM DIMM sockets which support up to 512MB unbuffered or 1GB registered PC/100 100MHz SDRAM. Accepted memory module sizes are 32MB, 64MB, 128MB and 256MB (registered). Either 72-bit ECC or 64-bit non-ECC 3.3v memory is supported. Five expansion slots are available on the board: three dedicated PCI slots, one dedicated ISA slot, and one PCI/ISA shared slot. The Intel PCI/ISA/IDE Xcelerator (PIIX4E) supports up to four IDE devices, DMA controllers, two fast IDE interfaces, a multi-function PCI-to-ISA bridge, power management logic, and a real-time clock. The National Semiconductor Super I/O controller integrates the standard I/O functions such as floppy drive interface, two Asynch serial ports, and keyboard and mouse controllers. Many important server components are integrated onto the board, including Intel's EtherExpress Pro+ 10/100MB network adapter, a Symbios Logic Dual Channel 40 MB/sec Ultra-Wide SCSI controller, and a Cirrus Logic graphics controller with 2MB of SGRAM.



Specifications

Model Number:  BOXN440BX

Brand:  Intel

Alt. Part Number(s):  N440BX

Product Type:  Server Motherboard



Technical Description

Brand:  Intel

Model:  BOXN440BX

Processor Class:  Pentium II, Pentium III, Slot I, Max Processor Speed 600 MHz

Number of Processors Supported:  2

Chipset Used:  Intel 440BX

Front Side Bus Supported:  100 MHz

Memory Types Supported:  1 GB (max) PC100 SDRAM Unbuffered ECC or RegisteredECC, 3.3 V; 32MB, 64MB, 128MB, 256MB

Number of Memory Slots:  4

Video Integrated:  2MB SGRAM

Audio Integrated:  None

Network Controller On-Board:  Intel's EtherExpress Pro+ 10/100MB network adapter

Onboard Device:  1 Parallel and 2 Serial Ports

IDE Mode Supported:  Ultra Wide SCSI, DMA/ATA-33 (Ultra)

SCSI Controller On-board:  Symbios Logic Dual Channel

AGP Slot:  None

Slots Available:  3 32-bit PCI 33MHz, 1 16-bit ISA, 1 Shared ISA/PCI

Number of USB Ports:  1 (on-board header)

Form Factor:  Server-AT, 12 x 13 Inches
