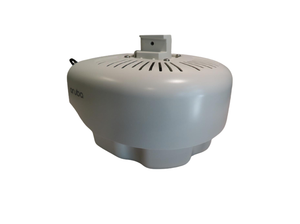

HP Wireless Access Point 802.11ac Wave 2 Outdoor JZ163A

Overview

Weatherproof and temperature hardened, the Aruba 370 Series Access Points deliver 802.11ac Wave 2 specifically designed for outdoor and environmentally challenging locations. The Aruba 370 high-performance and high power series deliver increased capacity and range. It delivers 4x4:4SS MU-MIMO capability, and the Aruba advanced ClientMatch and an integrated Bluetooth beacon to enable Aruba location services. Purpose-built to survive in the harshest outdoor environments, The 370 Series APs can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection. The Aruba 370 Series also has an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of large-scale battery-powered Aruba beacons while also providing advanced location, wayfinding, push notification and asset tracking capabilities.



Specifications

Model Number:  JZ163A

Brand:  HP

Alt Part Number(s):  JZ163A

Product Type:  Wireless Access Point



Technical Description

Brand:  HP

Model:  JZ163A

Wi-Fi Bands:  2.4 GHz, 5 GHz

Data Transfer Rate:  1733 MBps

Spread Spectrum Method:  DSSS, OFDM

Data Link Protocol:  IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Performance:  Maximum data rate (2.4 GHz): 300 Mbps, Maximum data rate (5 GHz): 1.733 Gpps

Line Coding Format:  16 QAM, 256 QAM, 64 QAM, BPSK, CCK, OFDM, QPSK

Voltage Required:  AC 120/230 V (50/60 Hz)

Power Consumption Operational:  12.5 Watt

Min Operating Temperature:  -40 °F

Max Operating Temperature:  131 °F

Humidity Range Operating:  5 - 95% (non-condensing)

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  External

Height:  5.5"

Width:  9.1"

Depth:  9.4"
