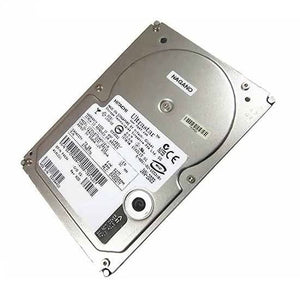

HGST IC35L073UWDY10 Ultrastar 146Z10 73GB 10000RPM SCSI 68-Pin 3.5-Inch Hard Drive

Overview

Introducing the sixth generation of Ultrastar 10,000 rpm disk drives. The Hitachi Ultrastar 146 Z10 drive family offers high quality and superior performance. These drives feature more powerful processors and read/write channels to excel in server-class environments. To achieve maximum I/O performance, the drives combine fast seek times, large 8 MB multi-segmented buffers, a sophisticated command queuing algorithm, hardware automation, and superior data rates (825 Mbps). Ultrastar 146 Z10 drives include new servo technology (Rotational Vibration Safeguard "RVS"), employed to counteract the effects of rotational vibration that commonly occur in multi-drive cabinets. They also employ fifth-generation giant magnetoresistive (GMR) head technology to double areal density from previous generation drives (26.3 Gbits/sq. in.) and boost performance. In addition, highly efficient No-ID* sector formatting enables more data to be stored per disk. The Ultrastar 146 Z10 family of server-class drives is the first of its class to incorporate our storage breakthrough technology antiferromagnetically-coupled (AFC) media. Informally known as gpixie dust, this technology sandwiches a three-atom thick layer of ruthenium, a precious metal, between two magnetic layers on a disk. AFC technology provides greater stability of the recording media, enhancing reliability. Drive Fitness Test enables drive self-testing and analysis for more robust system management. To help ensure data protection, Hitachi Ultrastar drives include exclusive reporting tools, such as Predictive Failure Analysis* (to signal potential drive problems) and Drive-TIP* (to monitor the drive temperature and avoid malfunctions). In addition, load/unload technology and glass substrate disks increase reliability of Ultrastar drives by providing a more robust solution at high rotational speeds. Hitachi Ultrastar drives provide extremely quiet operation. The tri-laminate drive cover reduces both idle and seek acoustics while an enhanced spindle motor driver enables smoother commutation for less noise. Moreover, the Ultrastar 146Z10 delivers an outstanding power efficient design. Hitachi Ultrastar drives provide high data throughput for data-intensive applications with a choice of 2 Gbit Fibre Channel and Ultra320 SCSI (backward-compatible) interfaces. The Ultra320 SCSI adds greater speed, reduced overhead, improved diagnostic capabilities and data protection.



Specifications

Model Number:  IC35L073UWDY10

Brand:  HGST

Alt Part Number(s):  IC35L073UWDY10

Product Type:  Hard Drive



Technical Description

Brand:  HGST

Model:  IC35L073UWDY10

Series:  Ultrastar 146Z10

Capacity:  73GB

Speed:  10,000RPM

Interface Types:  SCSI 68pin HD68 Female

Form Factor:  3.5inx1.0in LFF Hard Drive

Sector Size:  512 / 512e

Sustained Throughput:  33.8 - 66.7

Average Seek Time:  4.7ms

Electrical Interface:  SCSI LVD U320 - 320MBps 16-bit

On-Board Cache:  8MB

Enclosure Type:  Internal

Product Type:  Hard Drive



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
