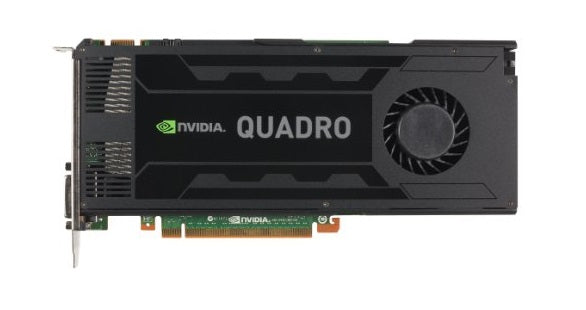

The NVIDIA Quadro K4000 graphics board offers ultra-fast performance and visual quality enhancing technical innovations that take a wide range of leading professional applications to the next level of performance and fluid interactivity. You get 3GB of GDDR5 GPU memory, 768 SMX CUDA parallel processing cores, the ability to drive up to four simultaneous displays, and full Shader Model 5 compatibility; all in a single slot form factor requiring significantly less power than competing graphics products. Designed and built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media and entertainment, sciences, and energy.
Model Number: D5R4G
Alt. Part Number(s): VCQK4000-PB
Type: Video Graphic Adapter
Model: D5R4G / VCQK4000-PB
Interface: PCI Express 2.0 x16
Chipset Manufacturer: NVIDIA
GPU: Quadro K4000
CUDA Cores: 768
Memory Size: 3GB
Memory Interface: 192-bit
Memory Type: GDDR5
DirectX: DirectX 11
OpenGL: OpenGL 4.3
DVI Ports: 1
Digital Resolution: Maximum DP 1.2 Resolution 3840 x 2160 at 60Hz, Maximum DVI-I DL Resolution 2560 x 1600 at 60Hz, Maximum DVI-I SL Resolution 1920 x 1200 at 60Hz
Analog Resolution: Maximum VGA Resolution 2048 x 1536 at 85Hz (Via included adapter)
Cooler: With Fan
Dual-Link DVI Supported: Yes
HDCP Ready: Yes
Operating Systems Supported: Windows 8, 7, Vista, or XP SP3
System Requirements: Maximum Power Consumption 80W
Dimension: 9.5" x 4.376"
Mosaic Mode: Yes (Windows 7 and Linux)
NVIDIA 3D Vision Pro: Yes, via Stereo connector bracket
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
