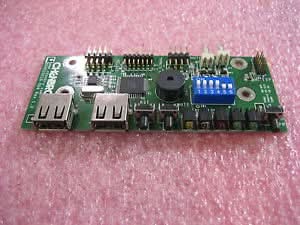

Chenbro 80H033216-004 USB-2.0 LED Board For Chenbro Chassis

Specifications

Model Number:                    80H033216-004

Brand:                                Chenbro

Mfr Part Number:                 80H033216-004

Type:                                 LED Board



Technical Description

Chenbro 80H033216-004 USB-2.0  LED Board For Chenbro Chassis.



General

Display

Power LED – Blue ( When Power is On )

HDD LED – Yellow (When HDD is busy )

Error LED – Red (When system is error )

LAN1, LAN2 LED – Green (When network is busy)

Connectors and Switches

One power, one reset and one alarm mute button

One buzzer for alerting

Two standard USB 2.0 ports

One connector for Redundant Power Supply failure detection

One connector to mute Redundant Power Supply built-in alarm

DIP switch to specify thermal warning level (55℃ or 65℃)

Dimensions 104.2 (Width) x 43 (Height) x 1.6 (Thickness) mm



Compatible with Chenbro Chassis

RM11600

RM11602

RM13106

RM21600

RM21804

RM31616

RM41500
