Description

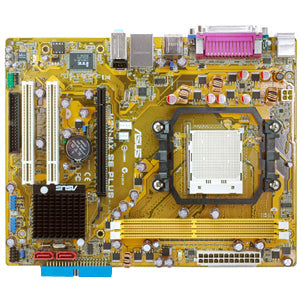

M2N-MX SE Plus Desktop Board delivers a host of new features and latest technologies, making it another standout in the long line of ASUS quality motherboards!
Processor & Chipset
- Chipset Manufacturer: NVIDIA
- Chipset Model: GeForce 6100
- Total Processor Supported: 1
- Processor Technology: Cool'n'Quiet Technology
- Processor Socket: Socket AM2+ PGA-940
- Processor Supported: Athlon 64
- Processor Supported: Athlon 64 FX
- Processor Supported: Athlon 64 X2
- Processor Supported: Athlon X2
- Processor Supported: Sempron
- HyperTransport Speed: 2000 MHz
- HyperTransport Speed: 1600 MHz
Memory
- Number of Memory Slots: 2
- Maximum Memory: 4 GB
- Memory Standard: DDR2-800/PC2-6400
- Memory Standard: DDR2-667/PC2-5300
- Memory Standard: DDR2-533/PC2-4200
- Memory Technology: DDR2 SDRAM
I/O Controller
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/300
- Controller Type: Ultra ATA/133 (ATA-7)
Audio
- Sound Controller Manufacturer: Realtek
- Sound Controller Model: ALC662
- Audio Channels: 5.1
Network & Communication
- Fast Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 3
- Number of PCI Slots: 2
- Total Number of PCI Express Slots: 1
- Number of PCI Express x16 Slots: 1
Interfaces/Ports
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Parallel Port: Yes
- Serial Port: Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
Onboard Interfaces
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 2
- Total Number of Onboard USB Ports: 2
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
- Onboard S/PDIF Header: Yes
Physical Characteristics
- Form Factor: Micro ATX
- Width: 9.6"
- Depth: 7.6"
Miscellaneous
- Package Contents:
- M2N-MX SE Plus Desktop Board
- 1 x Serial ATA cables
- 1 x SATA power cable
- 1 x UltraDMA 133/100/66 cable
- 1 x FDD cable
- 1 x I/O Shield
- User manual
- Support Disc
- Additional Information:
- ROHS Compliant
- Dual Channel memory supported
- Native support available for DDR2-1066 MHz
Chipsets:
- Northbridge: NVIDIA GeForce6100
- Southbridge: NVIDIA nForce430
BIOS Features:
- 8Mb Flash ROM
- AMI BIOS
- PnP
- DMI2.0
- WfM2.0
- SM BIOS 2.5
- ACPI 2.0
Manageability:
- WfM 2.0
- DMI 2.0
- WOL by PME
- WOR
- PXE
Support Disc contents:
- Drivers
- ASUS PC Probe II
- ASUS LiveUpdate Utility
- AMD Cool ' n' Quiet Utility
- Anti-virus software
