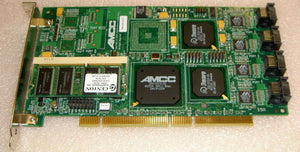

3Ware 9500S-8 128Mb SDRAM 8x Serial ATA 150 PCI 2.2 Raid Controller Card

$236.00 Regular price
Sale price$236.00
3WareSKU: 1075891
Model Number: 9500S-8
Condition: Refurbished
In stock:  Yes
No reviews

Sale price$236.00



3ware's advanced switched RAID architecture - StorSwitch unleashes the power of Serial ATA (SATA), delivering the highest hardware RAID performance in its class. The 3ware 9500S-8 hardware RAID controllers deliver in excess of 400 Mbytes per second (MB/sec) sustained RAID 5 reads and over 100 MB/sec RAID 5 sequential writes with less than 3% CPU utilization.



Model Number:  9500S-8

Brand:  3Ware

Condition:  Refurbished

Alt. Part Number(s):  9500S-8

Product Type:  Controller Card


Technical Description

Brand:  3Ware

Model:  9500S-8

Type:  SATA

Internal Connectors:  8 x SATA 150

Interface:  PCI 2.2 compliant 64-bit/66MHz

Transfer Rate:  Up to 1.5 Gb/sec per port

Cache Memory:  128 MB of ECC protected SDRAM

RAID:  RAID 0/1/5/10/50 JBOD

Operating Systems Supported:  Microsoft Windows 2003/XP/2000, Red Hat Linux, SuSE Linux, FreeBSD



Optimized hardware XOR RAID 5 engine provides true hardware based RAID and intelligent drive management functions

Single array capacity scales to over 4.8TB per controller (64-bit LBA support)

AMCC StorSave Platform for maximum reliability and performance:

Battery Backup Unit (BBU)

Write journaling for protection of drive write caching

Storage management:

Online Capacity Expansion to grow total capacity easily

RAID Level Management for converting non-redundant RAID volumes to RAID 5

StreamFusion maximizes performance through efficient handling of sequential streams

StorSwitch point-to-point, non-blocking switched architecture for highest performance

Bootable array support for greater fault tolerance

Variable stripe size for performance tuning by application

Multiple array background initialization for immediate data redundancy

Host controller and drive command queuing for peak performance

Support for up to 4 cards per system for large storage requirements

Multiple logical volumes and RAID levels can exist on one card for maximum configuration flexibility

Legacy and SATA II out of band (OOB) staggered drive spin-up support

Hot-swap and hot-spare support for data availability

Dynamic sector repair for robust data protection

S.M.A.R.T. disk drive monitoring for reliability

SMTP support for email/pager notification

Emergency Flash Recovery protects against power failure during firmware upgrades

Support for drive activity LED

Flexible task scheduling for increased useability

Multi-lane connectors based on the Infiniband SFF-8470 specification


* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
